Rod Guide W109

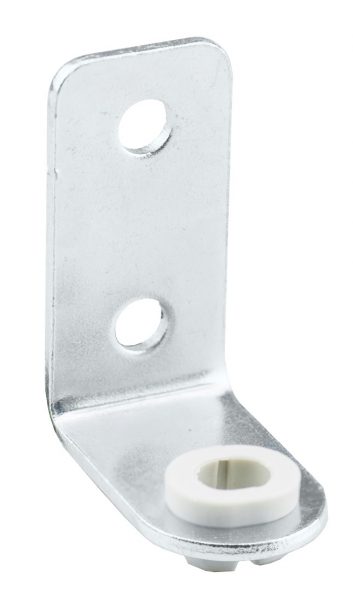

A rod guide W109 manufactured from steel with a zinc plated finish. This guide can be used with rods PR36 and PR38 to form part of a rod control system that can be used in multi-point locking systems.
Lock Description
Full details and accessories can be found on the Program Scheme drawing.
Have a question?
Lock Options
| Product Code | Finish | Inquire |
|---|---|---|
| W109-1 | Zinc Plate | Contact Sales |
| W109-2 | Zinc Plate | Contact Sales |
Standard Features
- Material: Steel
- Standard finish: Zinc plated
- Rod guide W109-1: use with rods PR36
- Rod guide W109-2: use with rods PR38 (except PR3813)
Additional Information
Rod Guide W109 technical drawing
| Choose rod type | Rods (must select one) | Rod Guide | Dual Roller Catch | Adapter | |
| Rod control system without cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
| Rod control system with 1-point cam | PR10-A-B-L | W106 (20) | |||
| PR11-A-B-L | W106 (20) | ||||
| PR2-M-K-L | W106 (20) | W102 (19) | |||
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) or W108-1 | ||||
| PR3612-L | W109-1 (16) or W108-1 | ||||
| PR3811-L | W109-2 (16) or W108-2* | *except PR3813 use W108-3 | |||
| PR3801-L | W109-2 (16) or W108-2* | W105 (17) | *except PR3813 use W108-3 | ||
