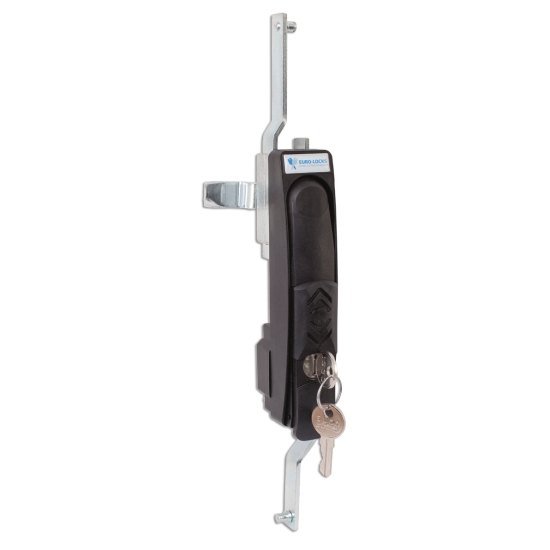

Swing Handle H827

A H827 swing handle with a standard barrel lock and polyamide 30% glass fiber body for strength and durability, the H827 has a pop-out swing handle that is available with a number of options.

View Lock Details
Featured Technicals
Lock Description

Please see below for full range of options including IP65 water resistant or  UL94 V0 flame resistant, contact us today for further information on +1 (616) 994 0490.

Have a question?
Lock Options
Product Code Max Panel Thickness Inquire
H827 1 – 2.5 Contact Sales
Standard Features
  • Lock type: Standard barrel lock
  • Panel thickness: 1mm – 2.5mm please state when ordering
  • Standard finish: Black 9005 RAL
  • Available with 1, 2, 3-point cam or rod-latch system: please state when ordering
  • Polyurethane sticker
  • Pop-out function

Optional features – please contact sales department to discuss

  • Customized logo
  • IP65 water resistant available on request
  • UL94 V0 flame resistant available on request (minimum order quantity applies)
  • Alternative colors and materials available upon request

Additional Information

Swing Handle H827 technical drawing

Part Number Guide

 Product number  IP65 Panel thickness Pivot Material Color Sticker with logo
H827 0

No

1

1,0 – 1,5 mm

1

ZNAL

1

PA6 30GF

9005

Black – standard

0

Without logo

1

Yes

2

1,51 – 2,0 mm

2

Brass*

2

PA6 30GF V0*

Other RAL

On request*

1

With Euro-Locks logo

3

2,01 – 2,5 mm

2

With customers logo

Locking type Key quantity Key variant
1

Lock without key

 Please indicate the number of keys required – 2 per lock as standard KTP

Choose one of the following codes: 1333, 2433A, 1242E, 405, 455, 9081**

2

Lock with key only

KTD

Choose one of the following key series: R, 9000, 9000M***

Example
H827 0 1 1 1 9005 1 1 2 KTP 1333

*Available on request only
**Please state key code for each lock when ordering
***Master key system available for 9000M series only
