Rods PR36

A 6mm diameter steel rod available with a zinc plated finish.

Lock Description

These rods are available with a round fixing point shape at the top if required and with a conical or 45° cut at the bottom. When used in conjunction with a rod control system and swing handle, these rods create a secure multi-point locking system for use on metal cabinets and enclosure doors.

Full details and accessories can be found on the Program Scheme drawing.

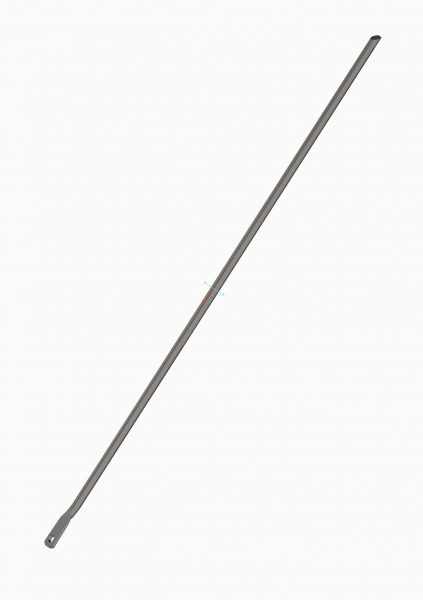

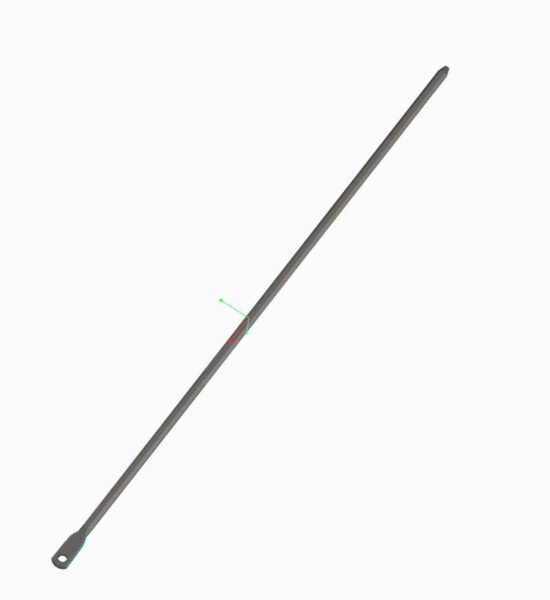

Note: Main image shows Rod PR3611 (cone shape end of rod)

Have a question?
Lock Options
Product Code Diameter Finish Enquire
PR36 6 Zinc Plate
Standard Features
  • Rod material: Steel
  • Standard finish: Zinc plated
  • Rod length: Cut to customers requirements, please state when ordering.

Additional information

Rods PR36 technical drawing

Suitable Rods and Accessories

Choose rod type Rods (must select one) Rod Guide Dual Roller Catch Adapter
 Rod control system without cam  PR10-A-B-L  W106 (20)
 PR11-A-B-L  W106 (20)
 PR2-M-K-L  W106 (20)  W102 (19)
 PR3803-A-B-L  W108-2 (15)  W105 (17)

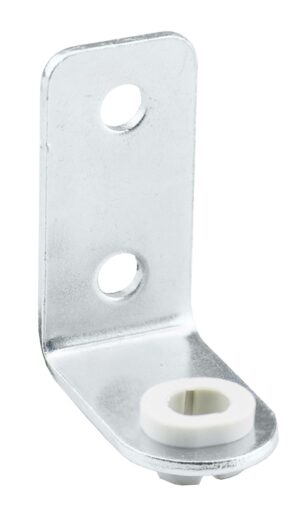

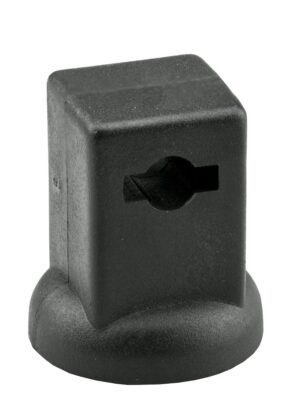

 PR3611-L  W109-1 (16) or W108-1
 PR3612-L  W109-1 (16) or W108-1
 PR3811-L  W109-2 (16) or W108-2*  *except PR3813 use W108-3
 PR3801-L  W109-2 (16) or W108-2*  W105 (17)  *except PR3813 use W108-3
 Rod control system with 1-point cam  PR10-A-B-L  W106 (20)
 PR11-A-B-L  W106 (20)
 PR2-M-K-L  W106 (20)  W102 (19)
 PR3803-A-B-L  W108-2 (15)  W105 (17)
 PR3611-L  W109-1 (16) or W108-1
 PR3612-L  W109-1 (16) or W108-1
 PR3811-L  W109-2 (16) or W108-2*  *except PR3813 use W108-3
 PR3801-L  W109-2 (16) or W108-2*  W105 (17)  *except PR3813 use W108-3
