Swing Handle H829

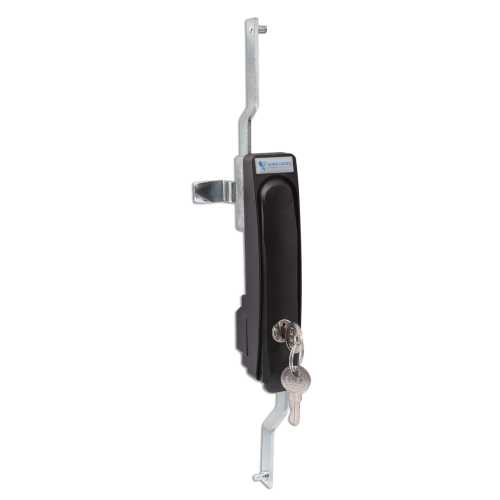

A H829 swing handle with a standard barrel lock. With a polyamide 30% glass fiber body for strength and durability, the H829 has a pop-out swing handle that is available with a number of options.

View Lock Details
Featured Technicals
Lock Description

Please see below for full range of options including a sliding dust cover, and choice of 1-point, 2-point or 3-point cam or rod-latch system or contact us today for further information on +1 (616) 994 0490.

Have a question?
Lock Options
Product Code IP65 Max Panel Thickness Inquire
H829 No 1 – 2.5 Contact Sales
Standard Features
  • Lock type: Standard barrel lock
  • Panel thickness: 1 – 2.5mm please state when ordering
  • Standard finish: Black 9005 RAL
  • Available with 1, 2, 3-point cam or rod-latch system: please state when ordering
  • Polyurethane sticker
  • No IP rating

Optional features – please contact sales department to discuss

  • Customized logo
  • UL94 V0 flame resistant available on request (minimum order quantity applies)
  • Alternative colors and materials available upon request

Additional Information

Swing Handle H829 technical drawing

Part Number Guide

 Product number  Panel thickness Pivot Material Color Sticker with logo
H829 1

1,0 – 1,51 mm

1

ZNAL

1

PA6 30GF

9005

Black – standard

0

Without logo

2

1,51 – 2,0 mm

2

Brass*

2

PA6 30GF V0*

Other RAL

On request*

1

With Euro-Locks logo

3

2,01 – 2,5 mm

2

With customers logo

Locking type Key quantity Key variant
 1

Lock without key

 Please indicate the number of keys required – 2 per lock as standard KTP

Choose one of the following codes: 1333, 2433A, 1242E, 405, 455, 9081**

 2

Lock with key only

KTD

Choose one of the following key series: R, 9000, 9000M***

Example
H829 0 1 1 1 9005 1 1 2 KTP 1333

*Available on request only
**Please state key code for each lock when ordering
***Master key system available for 9000M series only
