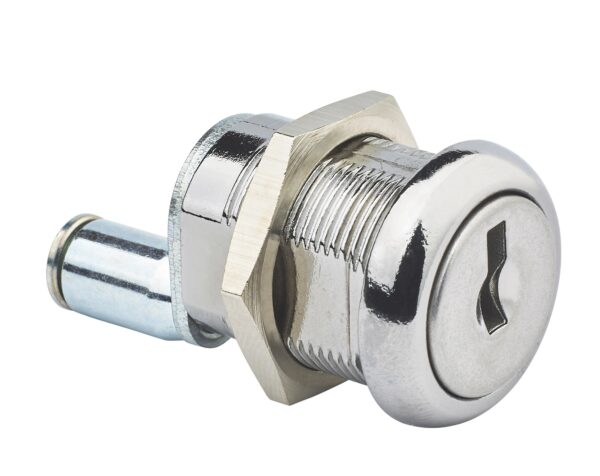

20mm Pedestal File Lock 1352
A series of 20mm pedestal file locks in bright chrome. Available with a round or conical head, capped or uncapped, this lock has been specifically designed for use in Metal and Wooden Furniture.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cap | Finish | Head Shape | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 1350 | 200 | 20 | 22 | 5 | Capped | Bright Chrome | Round | 12 | Contact Sales | |
| 1352 | 200 | 20 | 22 | 5 | Capped | Bright Chrome | Round | 12 | Contact Sales | |
| 1387 | 200 | 20 | 24.7 | 4.3 | Uncapped | Bright Chrome | Conical | 12 | Contact Sales | |
| 1388 | 200 | 20 | 24.7 | 4.3 | Uncapped | Bright Chrome | Conical | 12 | Contact Sales | |
| 1487 | 2000 | 20 | 24.7 | 4.3 | Uncapped | Bright Chrome | Conical | 12 | Contact Sales | |
| 1488 | 2000 | 20 | 24.7 | 4.3 | Uncapped | Bright Chrome | Conical | 12 | Contact Sales | |
| 4787 | 500 | 20 | 24.7 | 4.3 | Uncapped | Bright Chrome | Conical | 12 | Contact Sales | |
| 4788 | 500 | 20 | 24.7 | 4.3 | Uncapped | Bright Chrome | Conical | 12 | Contact Sales |
Standard Features
- Standard movements: 3, 4
- Lock Combinations: 200-2,000
- Standard finish: Bright chrome, stainless steel cap (1352, 1350 only)
- Panel thickness: 12mm
- Mounting hole shape: Double D
- M Keyed system supplied to order only
Additional Information
20mm Pedestal File Lock 1352 technical drawing
