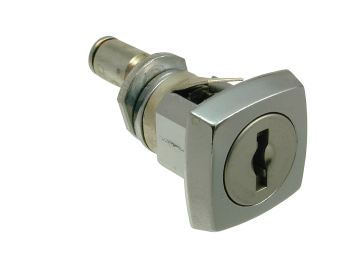

20mm Multi Drawer Lock 4246

A series of 20mm Multi-Drawer Locks in Bright Chrome.

Featured Technicals
20mm Multi Drawer Lock 4246 Technical Drawing
Lock Description

Available with 2 different cam types, this lock has been specifically designed for use in Metal and Wooden Office Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Cam Type Finish Head Shape Housing Fixing Max Panel Thickness Enquire
4209 2000 20 25.4 5.8 B Bright Chrome Square Snap In Fix 3
4246 2000 20 25.4 5.8 A Bright Chrome Square Snap In Fix 3
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 2,000
  • Standard finish: Bright chrome
  • Panel thickness: 3mm
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only

Additional information

20mm Multi Drawer Lock 4246 technical drawing
