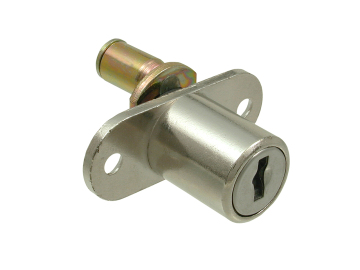

19mm Multi Drawer Lock 5829

A 19mm Multi-Drawer and Side Filer Lock 5829.

Featured Technicals
19mm Multi Drawer Lock 5829 Technical Drawing
Lock Description

Available with a horizontal or vertical fixing and up to 1,000 lock combinations, this lock has been specifically designed for use on Metal and Wooden Office Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Head Shape Housing Fixing Lock Fixing Max Panel Thickness Enquire
5829 200 19 16.3 19 Cylindrical Screw Fix Horizontal 19
5830 200 19 16.3 19 Cylindrical Screw Fix Vertical 19
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 200 (1,000 on request)
  • Standard finish: Barrel – Nickel, black chrome
  • Panel thickness: 19mm
  • Fixing hole shape: Screw fixed, horizontal (5829) or vertical (5830)
  • M Keyed system supplied to order only
  • Rosette supplied on request: 7008003
  • Please refer to Technical Resources for details on Accessories

Additional information

19mm Multi Drawer Lock 5829 technical drawing
