20mm Multi Drawer Lock 1360

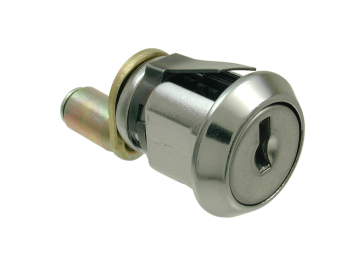

A series of 20mm Multi-Drawer Locks in Bright Chrome.

Featured Technicals
20mm Multi Drawer Lock 1360 Technical Drawing
Lock Description

This lock has been specifically designed for use in Metal and Wooden Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Finish Head Shape Head Shape Housing Fixing L Dimension Max Panel Thickness Enquire
1360 200 20 24 4.4 Bright Chrome Conical Conical Snap In Fix 11.5 3
4260 2000 20 24 4.4 Bright Chrome Conical Conical Snap In Fix 11.5 3
4760 500 20 24 4.4 Bright Chrome Conical Conical Snap In Fix 11.5 3
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 200-2,000
  • Standard finish: Bright chrome
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only

Additional information

20mm Multi Drawer Lock 1360 technical drawing
