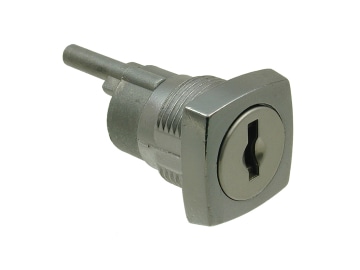

13mm Multi Drawer Lock 4703

A series of 13mm Multi-Drawer Locks in Bright Chrome.

Featured Technicals
13mm Multi Drawer Lock 4703 Technical Drawing
Lock Description

Available with 2 different cam types, this lock has been specifically designed for use in Metal and Wooden Office Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Finish Head Shape Housing Fixing Max Panel Thickness Enquire
4703 500 13 24 5 Bright Chrome Square Nut Fixing 5
4704 500 13 24 5 Bright Chrome Square Horseshoe Clip 7 & 4
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 500
  • Standard finish: Bright chrome
  • Panel thickness: Nut fixing 5mm; Horseshoe clip 7mm across flats, 4mm across rounds
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only
  • Cam fixing: Spun-on
  • Please specify cam ref when ordering (see technical drawing)

Additional information

13mm Multi Drawer Lock 4703 technical drawing
