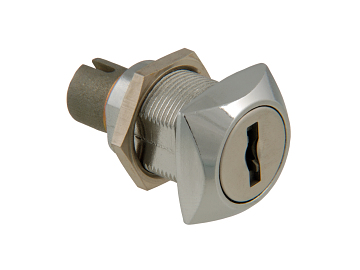

20mm Multi Drawer Lock C079

A series of 20mm Multi-Drawer Locks in Nickel and Chrome Plate.

Featured Technicals
20mm Multi Drawer Lock C079 Technical Drawing
Lock Description

This lock has been specifically designed for use in Metal and Wooden Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Fixing Hole Type Head Shape Housing Fixing Max Panel Thickness Enquire
C079 2000 20 24 6.9 A Square Nut Fixing 12
C650 2000 20 24 6.9 B Square Nut Fixing 12
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 2,000
  • Standard finish: Nickel and chrome plated
  • Panel thickness: 12mm
  • M Keyed system supplied to order only
  • Please refer to Technical Resources for details on Accessories

Additional information

20mm Multi Drawer Lock C079 technical drawing
