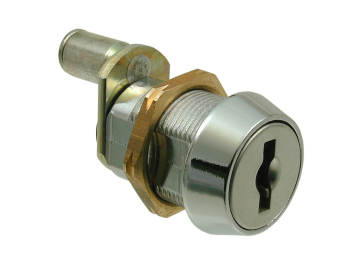

20mm Multi Drawer Lock 0810

A series of 20mm Multi-Drawer Locks available in bright chrome with a square or conical head.

Featured Technicals
20mm Multi Drawer Lock 0810 Technical Drawing
Lock Description

This lock has been specifically designed for use in Metal and Wooden Office Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Finish Head Shape Head Shape Housing Fixing Max Panel Thickness Enquire
0810 2000 20 23 7 Bright Chrome Conical Conical Horseshoe Clip 12
0811 2000 20 23 7 Bright Chrome Conical Conical Nut Fixing 12
0813 2000 20 0 Bright Chrome Square Square Horseshoe Clip 12
0820 2000 20 0 Bright Chrome Square Square Nut Fixing 12
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 2,000
  • Standard finish: Bright chrome
  • Panel thickness: 12mm
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only

Additional information

20mm Multi Drawer Lock 0810 technical drawing
