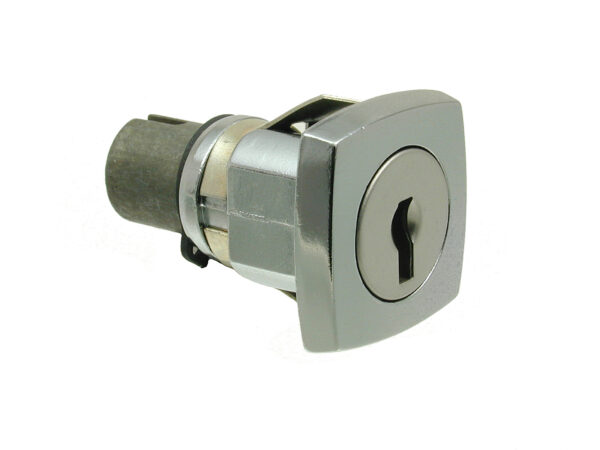

20mm Multi Drawer Lock 1306

A series of 20mm Multi-Drawer Locks available in bright chrome with a square or conical head.

Featured Technicals
20mm Multi Drawer Lock 1306 Technical Drawing
Lock Description

This lock has been specifically designed for use in Metal and Wooden Office Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Cap Finish Head Shape Housing Fixing Enquire
1306 200 20 25.4 5 Uncapped Bright Chrome Square Snap In Fix
1326 200 20 25.4 5 Capped Bright Chrome Round Nut Fixing
1380 200 20 25.4 5 Uncapped Bright Chrome Square Snap In Fix
1406 2000 20 25.4 5 Uncapped Bright Chrome Square Snap In Fix
1426 2000 20 25.4 5 Capped Bright Chrome Round Nut Fixing
B186 200 20 25.4 5 Capped Bright Chrome Round Nut Fixing
Standard Features
  • Standard movements: 1, 2, 3, 4, 7 (8 and 9 available on 1306)
  • Lock Combinations: 200-2,000
  • Standard finish: Bright chrome, stainless steel cap (1326, B186, 1426 only)
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only
  • 1380 & B186: These locks use a special barrel B2030. See technical drawing or contact sales department for more information.

Additional information

20mm Multi Drawer Lock 1306 technical drawing
