20mm Multi Drawer Lock C077

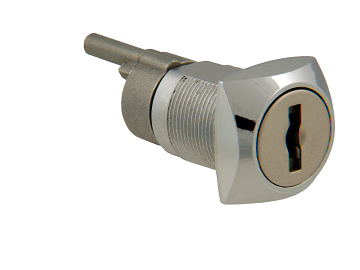

A 20mm Multi-Drawer Lock C077 in Nickel and Chrome Plate.

Featured Technicals
20mm Multi Drawer Lock C077 Technical Drawing
Lock Description

This lock has been specifically designed for use in Metal and Wooden Furniture.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Head Shape Housing Fixing Max Panel Thickness Enquire
C077 2000 20 24 6.9 Square Nut Fixing 12
Standard Features
  • Standard movements: 1, 2, 3, 4, 8
  • Lock Combinations: 2,000
  • Standard finish: Nickel and chrome plated
  • Panel thickness: 12mm
  • Fixing hole shape: Double D with notches
  • M Keyed system supplied to order only

Additional information

20mm Multi Drawer Lock C077 technical drawing
