20mm Multi Drawer Lock F192

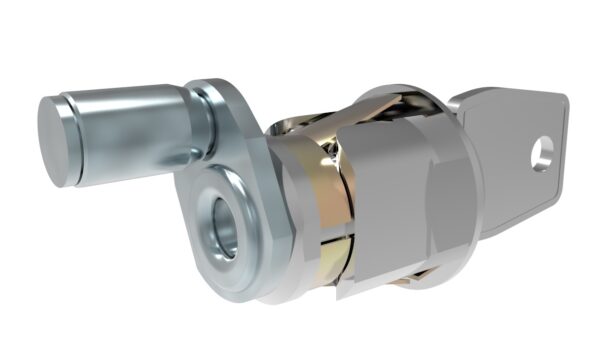

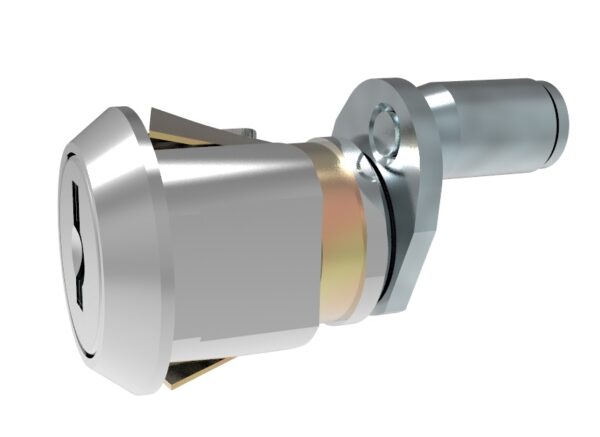

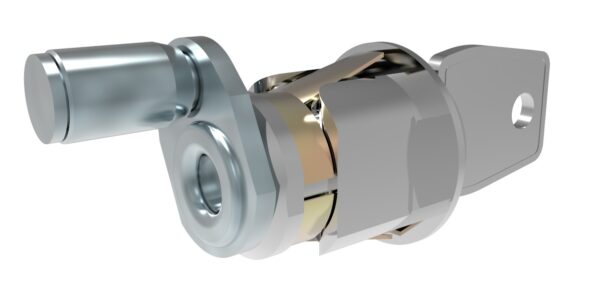

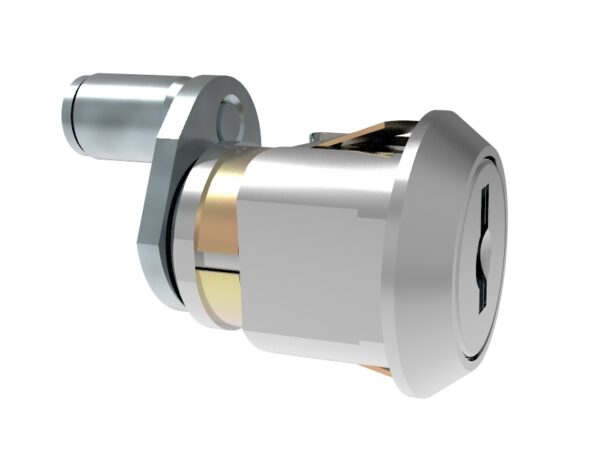

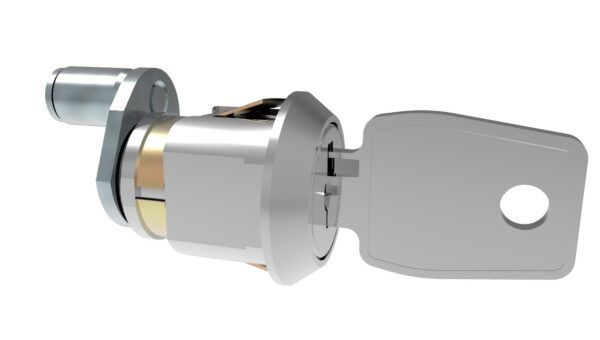

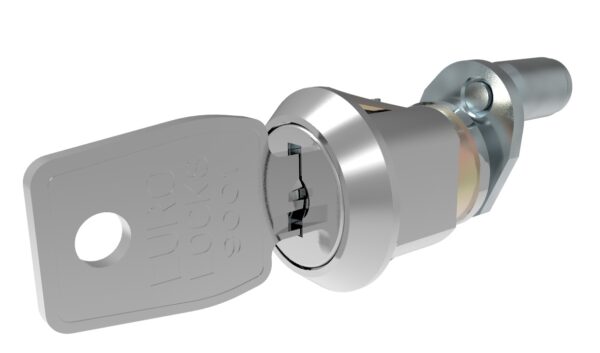

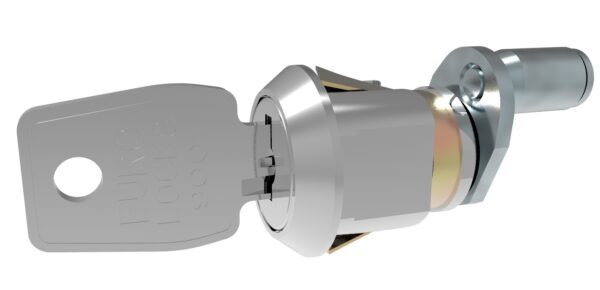

A 20mm Multi-Drawer Lock in Bright Chrome.

Lock Description

Available with a selection of cam travel distances (on request) this lock is specifically designed for use on Metal and Wooden Office Furniture.

This lock is also available with the S-Line antibacterial over moulded keys. The unique over moulding process helps fight bacteria and avoids cross contamination between multiple users of the same key. Download the brochure or contact us for more information.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Finish Head Shape Housing Fixing L Dimension Max Panel Thickness Enquire
F192 500 20 23 4.5 Bright Chrome Square Snap In Fix 11.5 3
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 500
  • Standard finish: Bright chrome
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only
  • Dimension ‘X’: Body Length
  • Roller cam: other cam travel, cam and panel thickness available on request

Additional information

20mm Multi Drawer Lock F192 technical drawing
