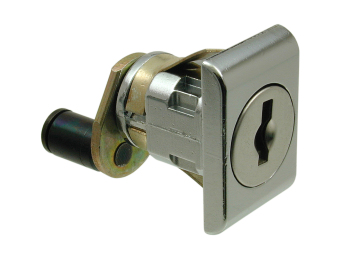

20mm Multi Drawer Lock 4796

A series of 20mm Multi-Drawer Locks in Bright Chrome.

Lock Description

This lock has been specifically designed for use in Metal and Wooden Furniture.

The F723 lock is now available with the S-Line antibacterial over moulded keys. The unique over moulding process helps fight bacteria and avoids cross contamination between multiple users of the same key. Download the brochure or contact us for more information.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Height Head Width Head Depth Finish Head Shape Housing Fixing Max Panel Thickness Enquire
4796 500 20 28.5 20 4.4 Bright Chrome Rectangular Snap In Fix 3
F723 500 20 28.5 20 4.4 Bright Chrome Rectangular Snap In Fix 0.8 - 2.9
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 500
  • Standard finish: Bright chrome
  • Panel thickness: 3mm
  • Fixing hole shape: Double D
  • M Keyed system supplied to order only

Additional information

20mm Multi Drawer Lock 4796 technical drawing
