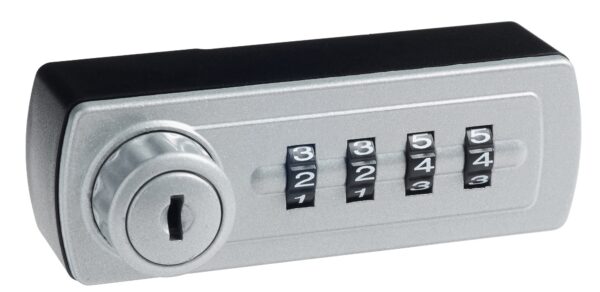

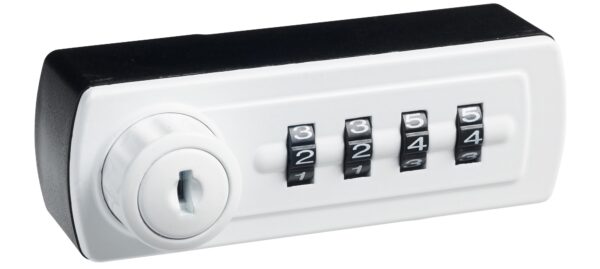

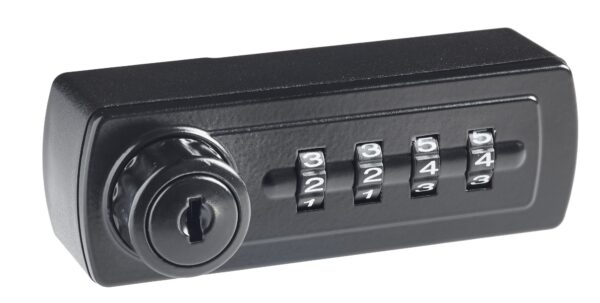

Gemini Mechanical Combination Lock 2700

The Gemini 2700 mechanical combination lock is a 4-wheel combination lock featuring up to 10,000 unique combinations that is now available in public mode version. The small footprint and option of vertical or horizontal orientation make Gemini the perfect choice for a wide range of applications, including lockers, storage cabinets and drawers.

View Lock Details
Featured Technicals
Lock Description

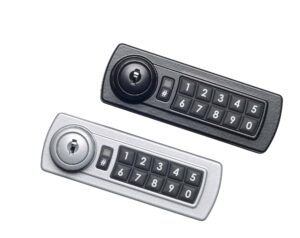

The Gemini lock range consists of both mechanical and digital versions available in both flush and surface mount form and in a choice of standard or bespoke colors.

Both lock types share the same profile and mounting template, giving maximum flexibility and choice at the point of installation.

Contact us today for more information or click here to download the brochure.

Have a question?
Lock Options
Product Code Code Combinations Body Length Body Height Body Width Body Depth Movement Operating Mode Inquire
2700V 10000 12 32 94 19 90° Private Contact Sales

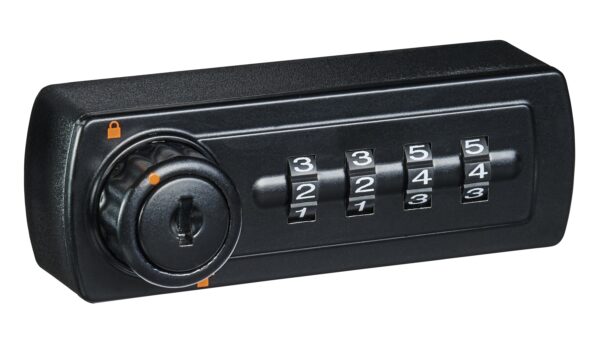

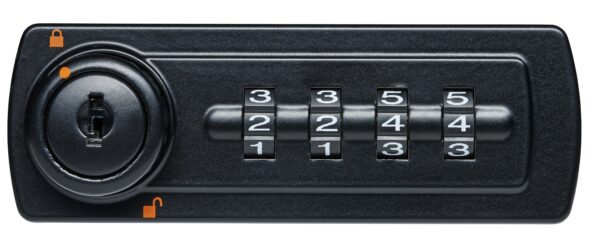

2700L 10000 12 32 94 19 180° Public Contact Sales
Standard Features
  • Public or private modes
  • Vertical, left and right-hand keypads
  • Flush or surface fit installation options

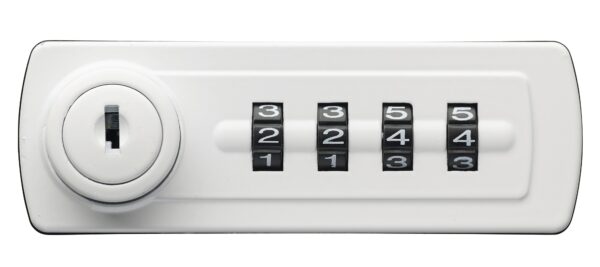

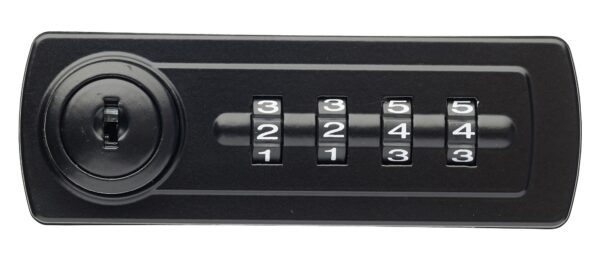

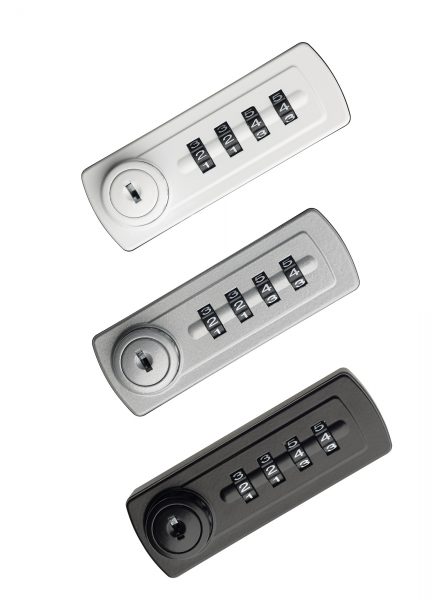

  • Black, silver or white color
  • 4-digit user code
  • Code finder key/function
  • Easy code change
  • Movement:
    • 0 – Vertical (LH) Counterclockwise to unlock
    • 1 – Vertical (RH) Clockwise to unlock
    • 2 – Right Hand (clockwise to unlock)
    • 3 – Left Hand (counterclockwise to unlock)

Additional Information





Gemini Mechanical Combination Lock 2700 technical drawing

Part Number Guide – 2700/-/-/- –

Product Number Operating Mode Orientation Finish
2700
Gemini
V
(Private Mode 90° only)

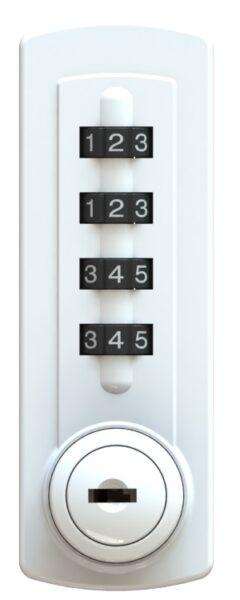

0

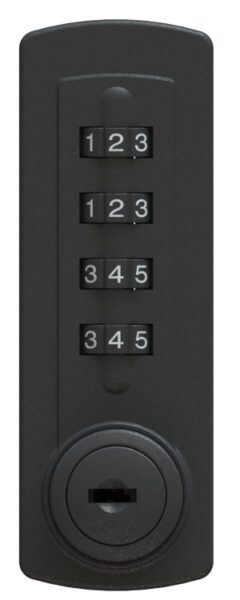

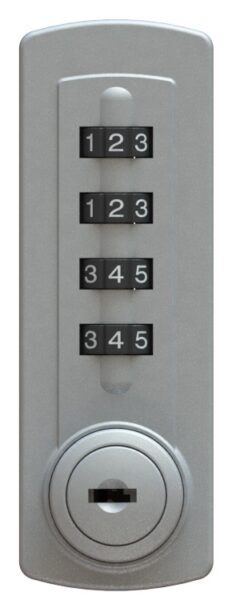

Vertical (LH)
Counter -clockwise to unlock

1A
White

1
Vertical (RH)
Clockwise to unlock

1B
Black
L
(Public Mode 180° only)

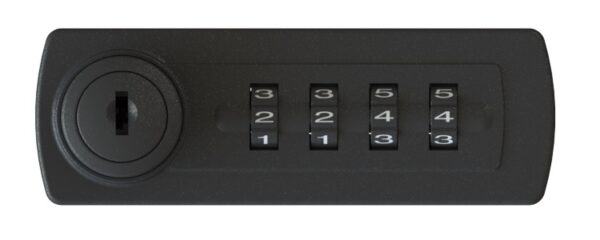

2

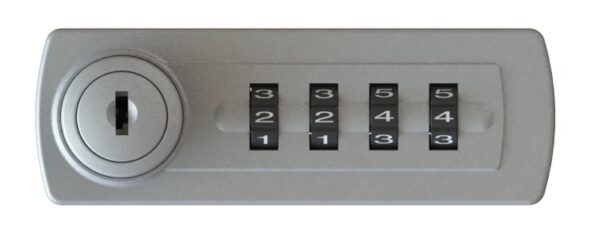

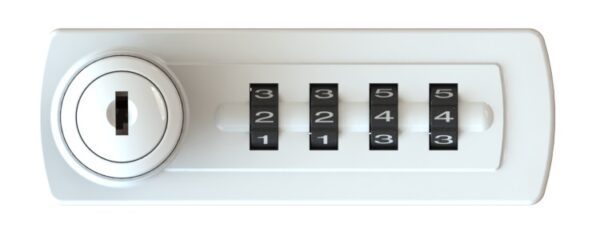

Right-Hand
Clockwise to unlock
1E

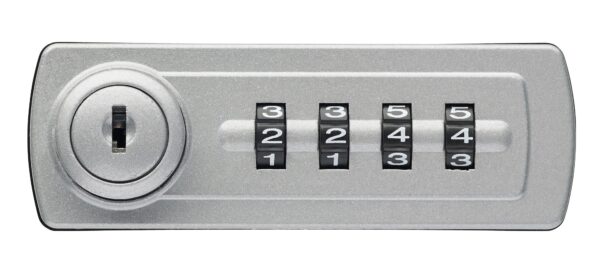

Silver

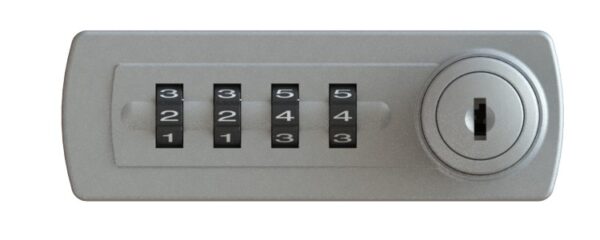

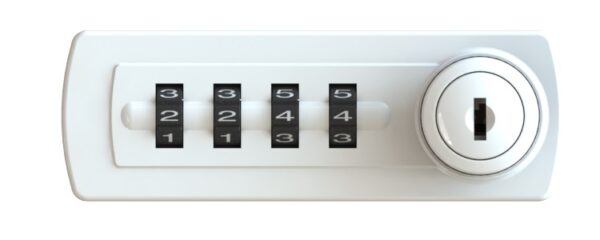

3

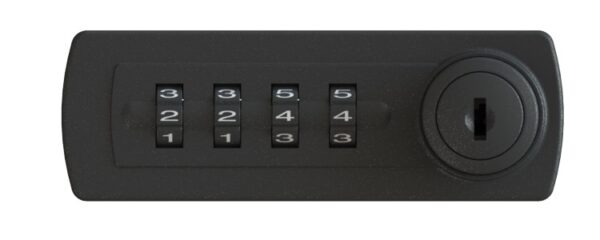

Left-Hand
Counter -clockwise to unlock

Gemini Mechanical – Set a new User Code (Private Mode Version)

Gemini Mechanical – Code finder function

Gemini Mechanical – Open Lock (Private Mode Version)

Gemini Mechanical – Close Lock (Private Mode Version)

Gemini Mechanical – Operate Lock (Public Mode Version)
