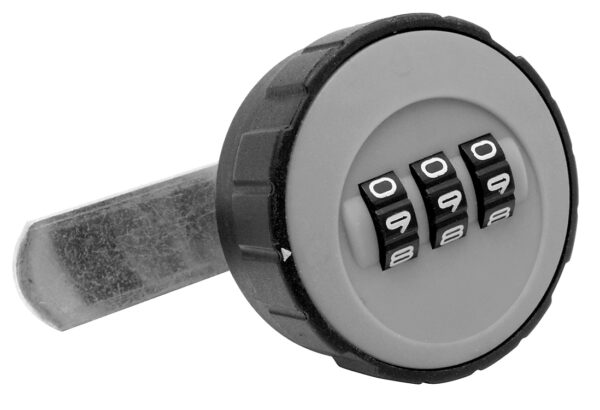

Combination Lock A151

A compact 3 – digit mechanical combination lock A151 available with a robust plastic lock body.

Featured Technicals
Combination Lock A151 Technical Drawing
Lock Description

With simple code changes and other code functions, this lock is ideal for numerous applications such as Enclosures and Metal and Wooden Office Furniture and eliminates the need for a key.

Have a question?
Lock Options
Product Code Code Combinations Body Length Body Width Body Depth Finish Housing Fixing Enquire
A151 1000 20.2 44 20.9 Plastic (PA6 30GF) Nut Fixing
Standard Features
  • Number of codes: 1,000
  • Standard finish: Plastic (PA6 30GF) – Face grey/Housing black
  • Cam fixing: self-tapping torx screw
  • Lock fixing: nut (maximum panel thickness 12mm)
  • Standard piercing hole: 19.1mm x 16.1mm
  • Cam thickness: 2 and 3mm
  • Right-hinged doors only
  • Code changeable
  • For cam piercing nr. 7

Additional information

Combination Lock A151 technical drawing
