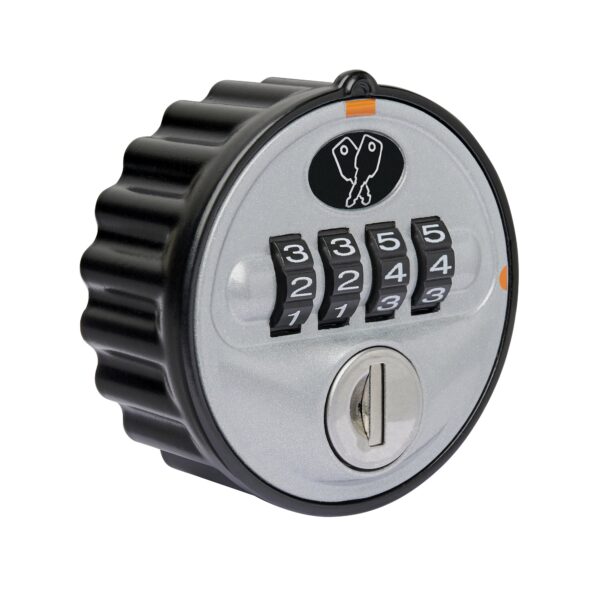

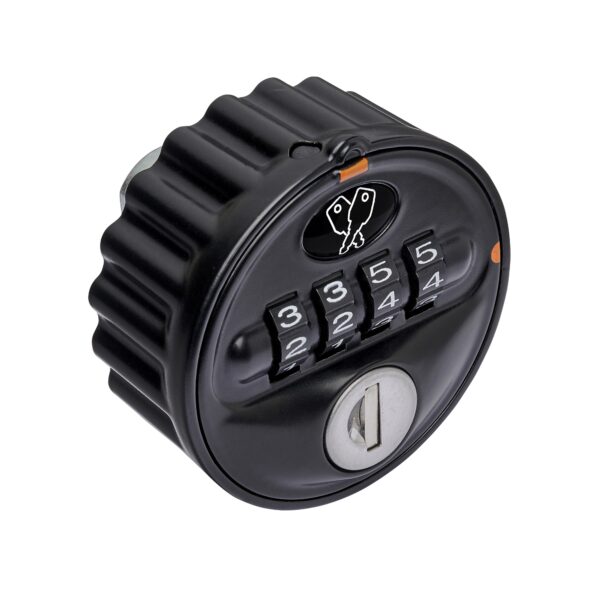

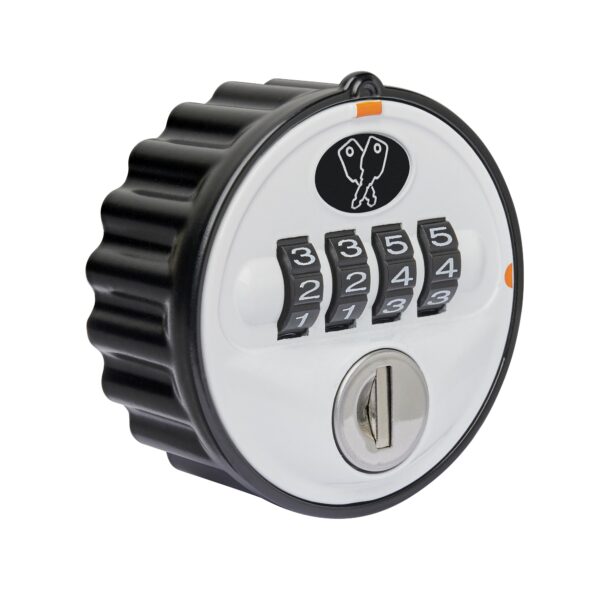

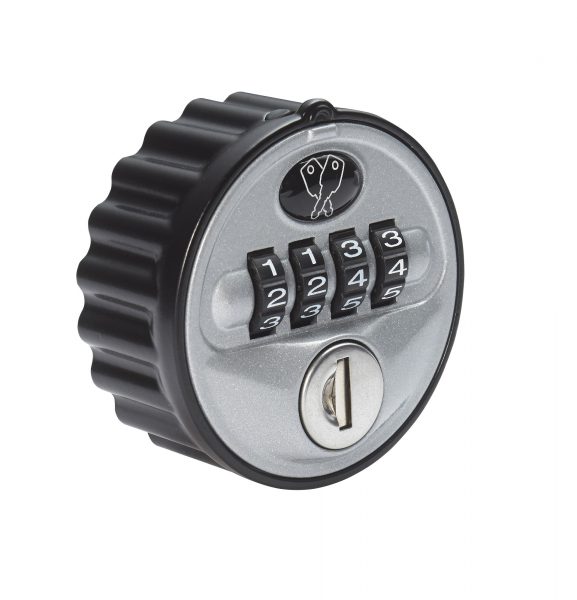

Combination Lock 2800

The 2800 mechanical combination lock is a 4 wheel combination lock featuring up to 10,000 unique combinations. With a robust design this combination lock is available with a range of options including single-use public mode, private mode* and wet area versions.

Lock Description

For added security the combination lock is also available with an optional ‘twist resist’ feature. Fitted with pan head screws, the lock offers increased resistance to forced entry as features on the rear of the lock locate in corresponding holes in the door. Customer to specify fitting option choice at time of order. For more information please see Fitting Options below.

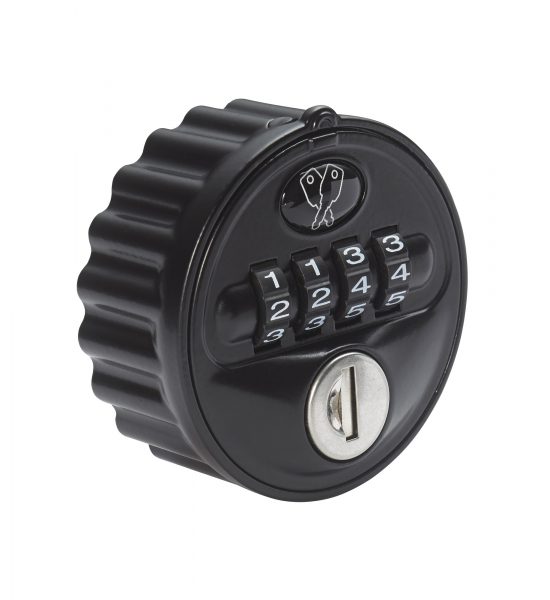

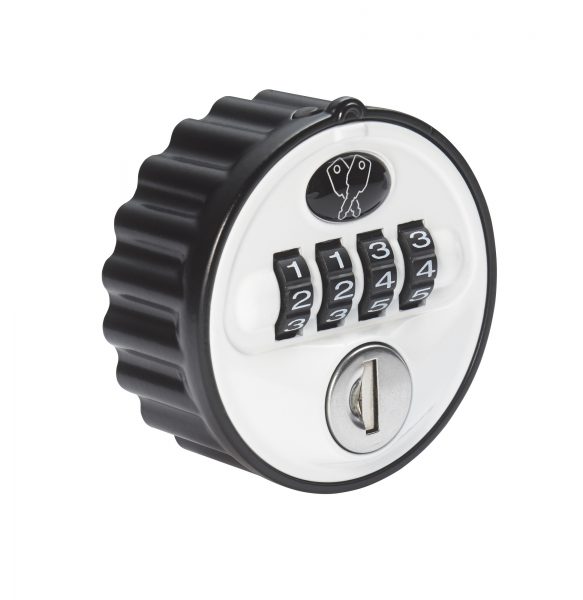

In private mode, a simple button allows the user to set their own pin code and change it at any time, whilst the innovative code finding function allows emergency access in the event of lost or forgotten codes (operable in all modes). The high quality powder coated finish ensures maximum protection and fitting is made easy by the industry footprint.

With a sturdy design, range of options and simplicity of use this lock is suitable for a broad range of applications including lockers and office furniture.

For further information you can download a copy of our brochure. User and Installation Guides can be found in the Downloads section below.

*NOTE: User mode MUST be specified at time of order – lock CANNOT be switched between public and private mode.

Have a question?
Lock Options
Product Code Code Combinations Body Length Body Width Body Depth Cam Fixing Housing Fixing Lock Feature Enquire
2800 10000 20 56 28 Screw Nut Fixing Standard
Standard Features
  • Public and private mode versions available
  • Left and right hand versions available
  • Standard fit or twist resist versions available
  • Zinc die-cast construction
  • 4-Wheel combination (10,000 codes)
  • Code finding feature (10 Disc barrel with shutter cap)
  • Code changing function – only accessible in the un-locked position
  • Powder coated finish

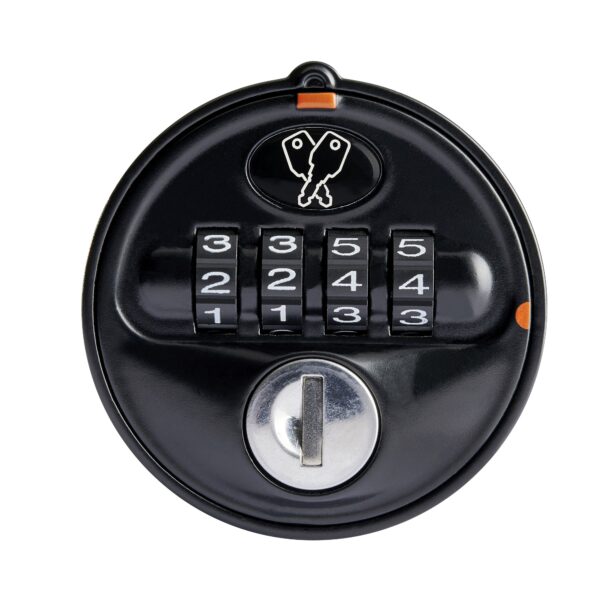

  • Body – black as standard

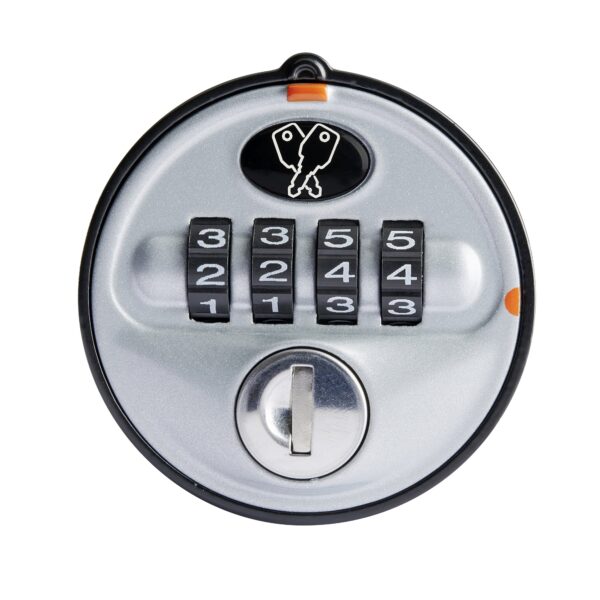

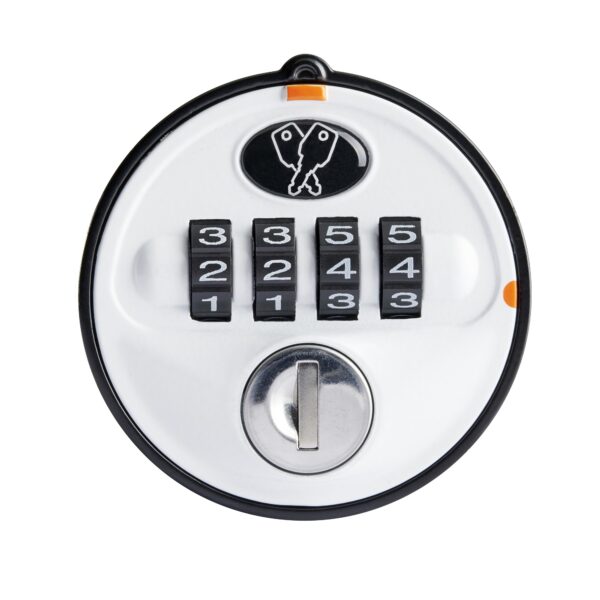

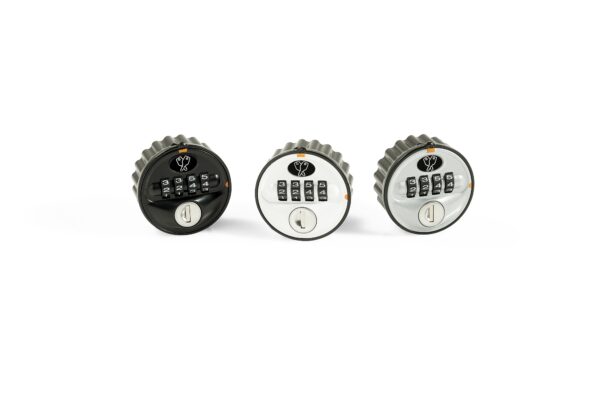

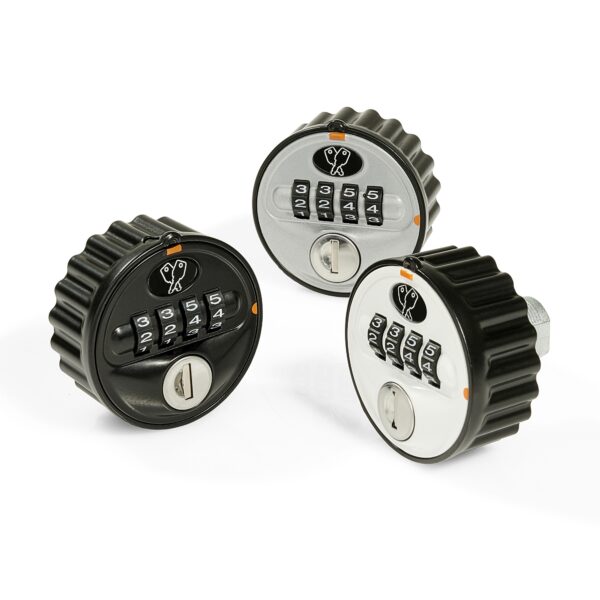

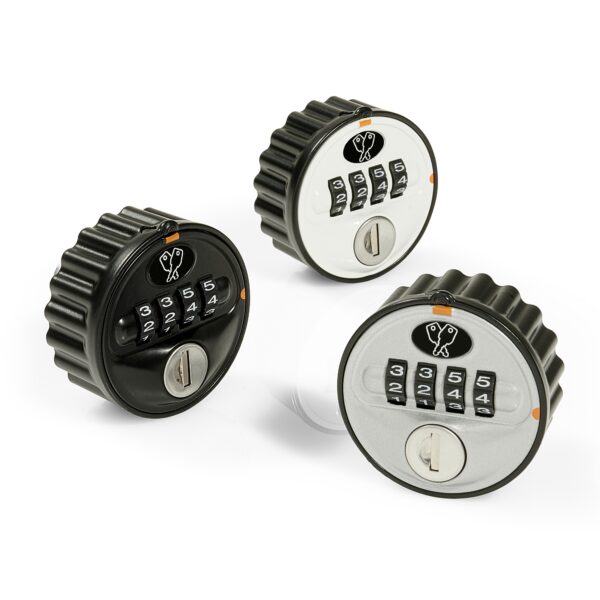

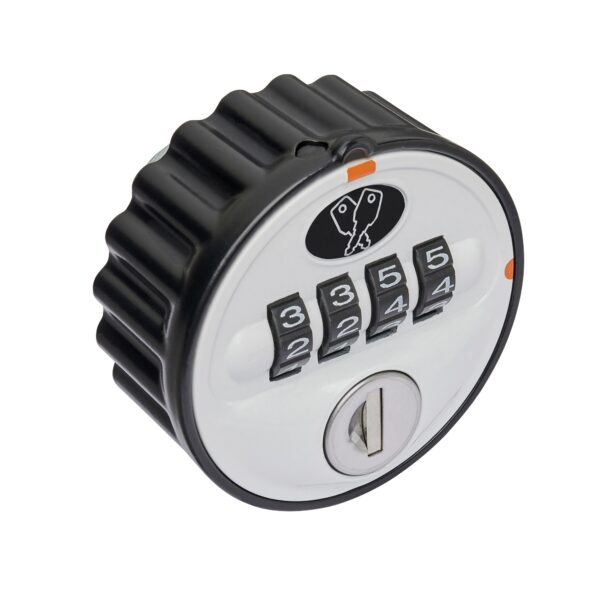

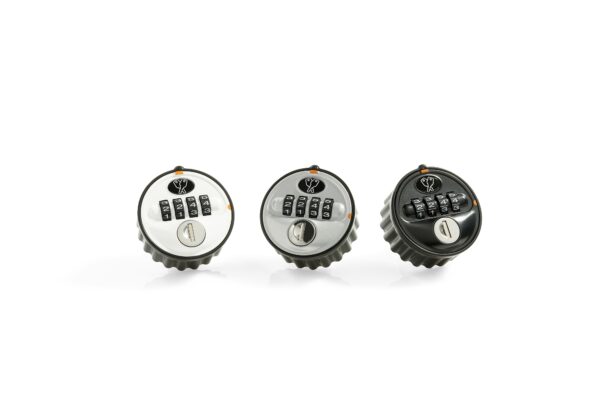

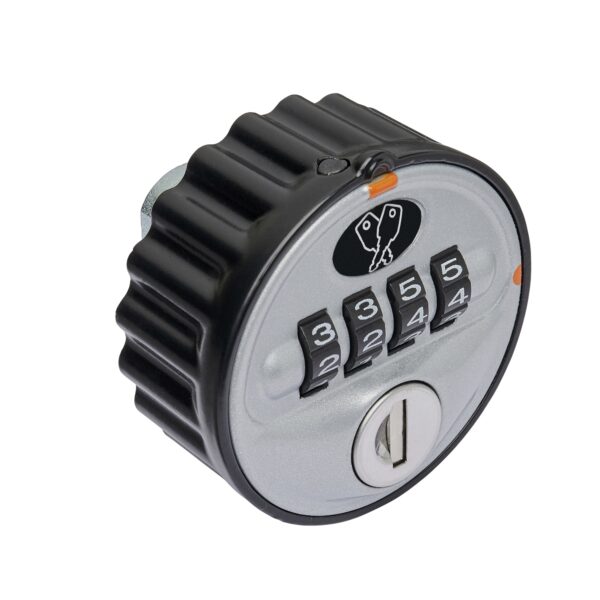

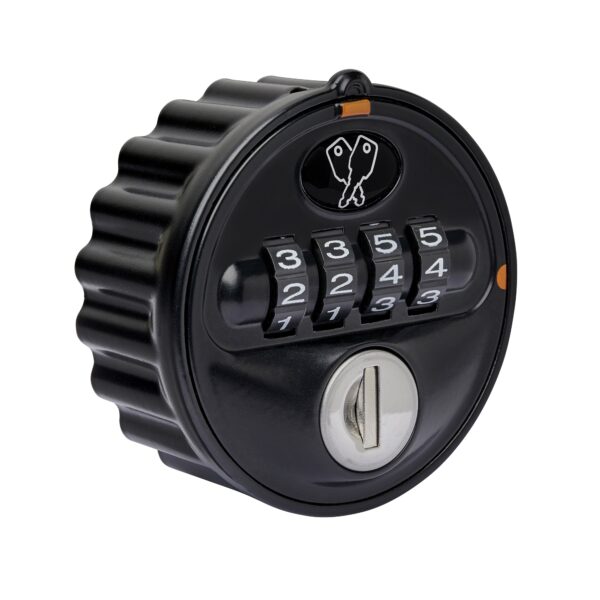

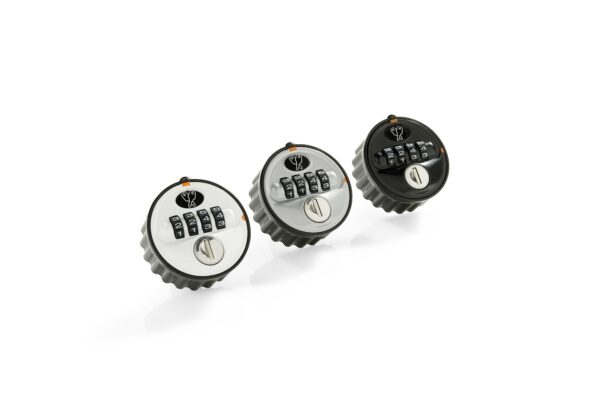

  • Face – white, silver or black as standard
  • Other colours are available on request
  • Diameter – 56 x 28mm (protrudes from door frame)
  • Nut fixing – 3/4” – 27 UN x 20mm long (15.9mm A/F)
  • Cam fixing – 8mm Sq. with M4 thread
  • Epoxy logo badge (customer logo available on request)
  • Standard fitting with countersunk screws
  • Twist resist fitting with pan head screws

Additional information

Combination Lock 2800 technical drawing

Part Number Guide – 2800/-/-/-/–/——-

Product Number Operating Mode Barrel Movement Cover Plate Finish Fitting Options

2800

V

Private Mode

0

Non-Mastered

1

Right Hand

(clockwise to open)

1A

White

9525001

Option 1

Standard Fit



1B

Black

9525002

Option 2

Twist Resist

9525003

Option 3

Twist Resist

L

Public Mode

5

Mastered

2

Left Hand

(anti-clockwise to open)

1E

Silver

9525004

Option 4

Twist Resist

9525005

Option 5

Twist Resist

Mechanical Combination Lock – Close Lock

Mechanical Combination Lock – Code finder function

Mechanical Combination Lock – Open Lock

Mechanical Combination Lock – Set a new user code

Fitting Options

Option 1 Standard Fit
Option 2 Twist Resist
Option 3 Twist Resist
Option 4 Twist Resist
Option 5 Twist Resist
Product Code 9525001 9525002 9525003 9525004 9525005
Door Thickness up to 14mm up to 14mm up to 14mm 14mm – 19.5mm 14mm – 23mm
Fixing Hole Details 16A/F x Ø19 16A/F x Ø19 and 2 x Ø6.5 Holes

or

Ø19 and 2 x Ø6.5 Holes
16A/F x Ø19 and 2 x Ø6.5 Holes

or

Ø19 and 2 x Ø6.5 Holes
Ø22.5 and 2 x Ø6.5 Holes Ø22.5 and 2 x Ø6.5 Holes
Kit Contents Standard Housing Nut

*2 x CSK Screws

1 x M4 x 6 Patch Screw

1 x M4 Washer

*supplied fitted to lock
Standard Housing Nut

*2 x Pan Head Screws

1 x M4 x 6 Patch Screw

1 x M4 Washer

*supplied fitted to lock
Standard Housing Nut

*2 x Pan Head Screws

*2 x Pan Head Spacers

1 x M4 x 6 Patch Screw

1 x M4 Washer

*supplied fitted to lock
Extension Housing Nut

*2 x Pan Head Screws

*2 x Pan Head Spacers

1 x M4 x 6 Patch Screw

1 x M4 Washer

*supplied fitted to lock
Extension Housing Nut

*2 x Pan Head Screws

*2 x Pan Head Spacers

1 x Cam Extension 6.25mm

1 x M4 x 12 Patch Screw

1 x M4 Washer

*supplied fitted to lock
