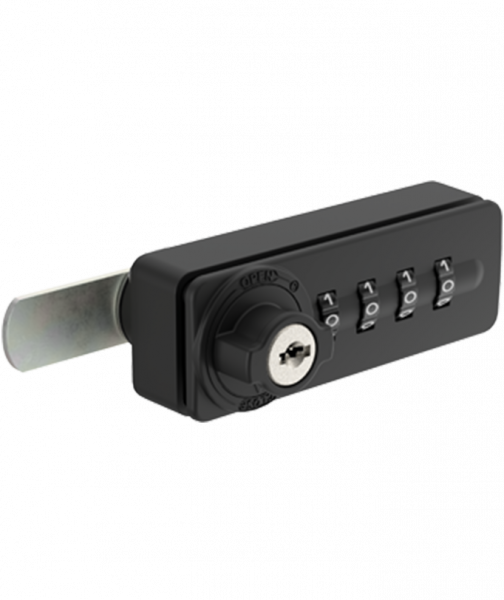

Combination Lock A152

The A152 4-wheel combination lock has 10,000 unique code combinations and an automatic “code scrambling on entry” feature to protect the user code from being viewed by a third party.

Featured Technicals
Combination Lock A152 Technical Drawing
Lock Description

The end user can set and change their own 4-digit entry code and the lock also has a simple key override which allows a manager to discover the code in use.



Available with many different options this lock is ideal for various applications including Medical and Metal Office Furniture.

Have a question?
Lock Options
Product Code Code Combinations Body Length Body Height Body Width Body Depth Max Panel Thickness Mounting Movement Orientation Enquire
A152A 10000 13 35.9 91.8 29 0.5 - 10 Surface Mount 180° Right Horizontal
A152B 10000 28 30.8 86.5 28 0.5 - 10 Flush Fit 180° Right Horizontal
A152C 10000 28 30.8 86.5 28 13 - 22 Flush Fit 180° Right Horizontal
Standard Features
  • Code Combinations: 10,000
  • Standard finish: Black, silver (mazak lock housing and knob)
  • Panel thickness: 0.5 – 22mm
  • Maximum axial load on lock: 30kg
  • Cam thickness: 2.0mm, 2.5mm and 3.0mm
  • Lock fixing: 2 x M3 screws
  • Automatic code scrambling by lock operation
  • Codefinding and emergency opening via master key
  • Vertical, left and right hand fixing
  • Surface mount or flush fit
  • For cam piercing nr.7
  • Suitable for indoor use only (no IP-protection)
  • Cam retained in closed position
