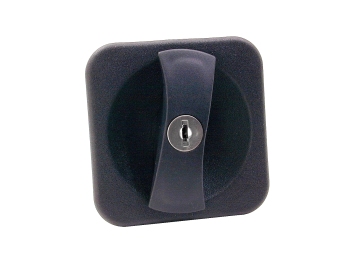

Flush Fitting Handle B824
A range of flush fitting handles in black plastic. Available with a 2 or 3-point locking mechanism and with minimal projection this handle is ideal for various applications including Metal Office Furniture, Enclosures and Lockers.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Handle Depth | Finish | Handle Diameter | Lock Type | Max Panel Thickness | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 1696 | 200 | 17.7 | 12 | Black | 85 | Locking | 0.8 – 1.2 | 8 | Contact Sales | |
| 1793 | 2000 | 17.7 | 12 | Black | 85 | Locking | 0.8 – 1.2 | 8 | Contact Sales | |
| B824 | 2000 | 17.7 | 12 | Black | 85 | Locking | 0.8 – 1.2 | 8 | Contact Sales | |
| B866 | 2000 | 17.7 | 12 | Black | 85 | Locking | 0.8 – 1.2 | 8 | Contact Sales | |
| B875 | 2000 | 17.7 | 12 | Black | 85 | Locking | 1.2-1.5 | 8 | Contact Sales | |
| B894 | 17.7 | 12 | Black | 85 | Non-Locking | 0.8 – 1.2 | 8 | Contact Sales | ||
| B895 | 17.7 | 12 | Black | 85 | Non-Locking | 0.8 – 1.2 | 8 | Contact Sales | ||
| B896 | 2000 | 17.7 | 12 | Black | 85 | Locking | 1.2-1.5 | 8 | Contact Sales | |
| B897 | 17.7 | 12 | Black | 85 | Non-Locking | 1.2-1.5 | 8 | Contact Sales | ||
| B904 | 17.7 | 12 | Black | 85 | Non-Locking | 1.2-1.5 | 8 | Contact Sales |
Standard Features
- Lock combinations: 200 up to 2,000
- Standard movements: 8
- Standard finish: Rose – Black. Handle – Black (other colours available on request)
- Maximum panel thickness: 0.8mm – 1.5mm
- M Keyed system supplied to order only
Additional Information
Flush Fitting Handle B824 technical drawing
