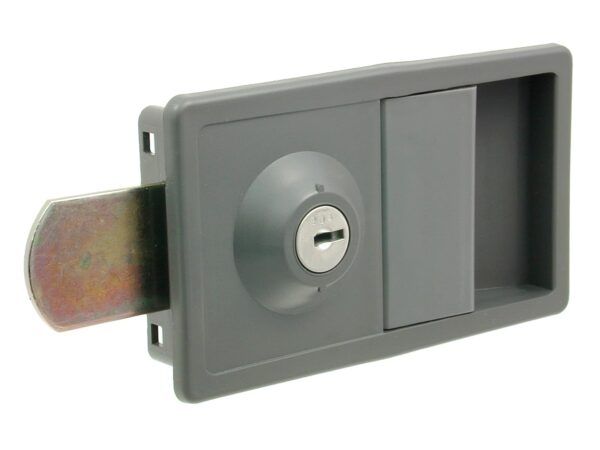

Flush Fitting Handle 1650

A range of flush fitting handles available in grey or black plastic.

Featured Technicals
Flush Fitting Handle 1650 Technical Drawing
Lock Description

With minimal projection, this handle projects only 13mm from the face of the door when in the locked position so reducing the risk of snagging and damage to clothing of passers-by and damage to other items whilst in transportation. This makes it ideal for many applications including Metal Office Furniture, Enclosures and Lockers.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Handle Depth Handle Height Handle Length Lock Type Max Panel Thickness Movement X Dimension Enquire
1650 200 7 20 74 124 Locking 0.8 - 1.2 8 13
1651 500 7 20 74 124 Locking 0.8 - 1.2 8 13
1652 7 20 74 124 Non-Locking 0.8 - 1.2 13
1653 7 20 74 124 Fixed 0.8 - 1.2 8 13
1679 2000 7 20 74 124 Locking 0.8 - 1.2 8 13
1681 2000 7 20 74 124 Locking 0.8 - 1.2 8 22
Standard Features
  • Lock combinations: 200 – 2,000
  • Standard movements: 08
  • Standard finish: Grey or black plastic
  • Panel thickness: 0.8mm – 1.2mm (maximum of 2mm available on request)
  • Minimal projection: 13mm from face of door
  • M Keyed system supplied to order only

Additional information

Flush Fitting Handle 1650 technical drawing
