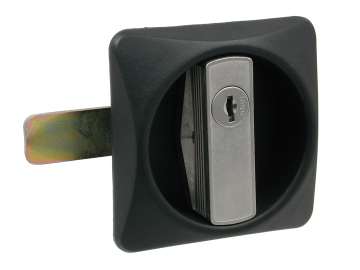

Flush Fitting Handle F90

A range of flush fitting handles with a satin chrome handle. Available with a quick mounting feature and with minimal projection this handle is ideal for various applications including Metal Office Furniture, Enclosures and Lockers.

View Lock Details
Featured Technicals
Lock Options
Product Code Key Series Combinations Body Length Handle Depth Handle Diameter Handle Finish Lock Type Max Panel Thickness Movement Rose Finish Inquire
F241 13.8 15 87 Satin Chrome Non-Locking 0.8 – 1.2 8 Black Contact Sales
F534 2000 13.8 15 87 Satin Chrome Locking 0.8 – 1.2 8 Black Contact Sales
F90 500 13.8 15 87 Satin Chrome Locking 0.8 – 1.2 8 Black Contact Sales
Standard Features
  • Lock combinations: 200 – 2,000
  • Standard movements: 8
  • Standard finish: Rose: Black, Handle: Satin Chrome (1791, 1691 & 5835 Bright Chrome only)
  • Panel thickness: 0.8mm – 1.2mm
  • M Keyed system supplied to order only
  • Dimension ‘B’ Specification: See Cams for handles

Additional Information

Flush Fitting Handle F90 technical drawing
