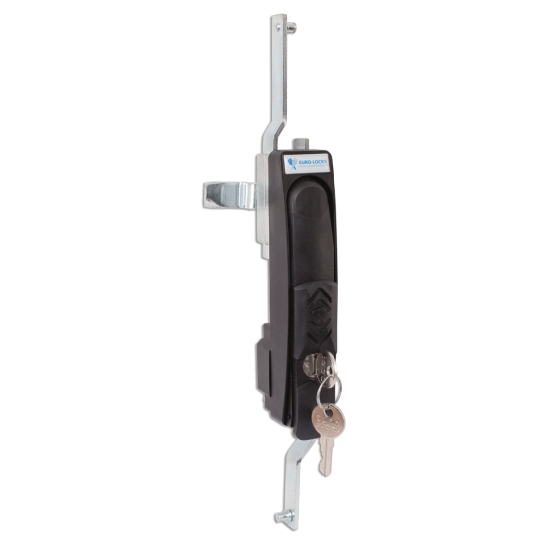

Swing Handle H826
A H826 swing handle with euro-profile cylinder. Manufactured from polyamide 30% glass fiber body for strength and durability, this handle is available with a number of options including IP65 water resistant or UL94 V0 flame resistant.
Lock Description
The H826 has a pop-out swing handle that is available with a number of options, including a sliding dust cover, and choice of 1-point, 2-point or 3-point cam or rod-latch system. Contact us today for further information on +1 (616) 994 0490.
Have a question?
Lock Options
| Product Code | Max Panel Thickness | Inquire |
|---|---|---|
| H826 | 1 – 2.5 | Contact Sales |
Standard Features
- Lock type: Euro-profile cylinder
- Panel thickness: 1mm – 2.5mm please state when ordering
- Standard finish: Black 9005 RAL
- Available with 1, 2, 3-point cam or rod-latch system: please state when ordering
- Polyurethane sticker
- Pop-out function
Optional features – please contact sales department to discuss
- Customized logo
- IP65 water resistant available on request
- UL94 V0 flame resistant available on request (minimum order quantity applies)
- Alternative colors and materials available upon request
Additional Information
Swing Handle H826 technical drawing
Part Number Guide
| Product number | IP65 | Panel thickness | Pivot | Material | Color | Sticker with logo | ||||||
| H826 | 0
No |
1
1,0 – 1,5 mm |
1
ZNAL |
1
PA6 30GF |
9005
Black – standard |
0
Without logo |
||||||
| 1
Yes |
2
1,51 – 2,0 mm |
2
Brass* |
2
PA6 30GF V0* |
Other RAL
On request* |
1
With Euro-Locks logo |
|||||||
| 3
2,01 – 2,5 mm |
2
With customers logo |
|||||||||||
| Example | ||||||||||||
| H826 | 0 | 1 | 1 | 1 | 9005 | 1 | ||||||
*Available on request only
