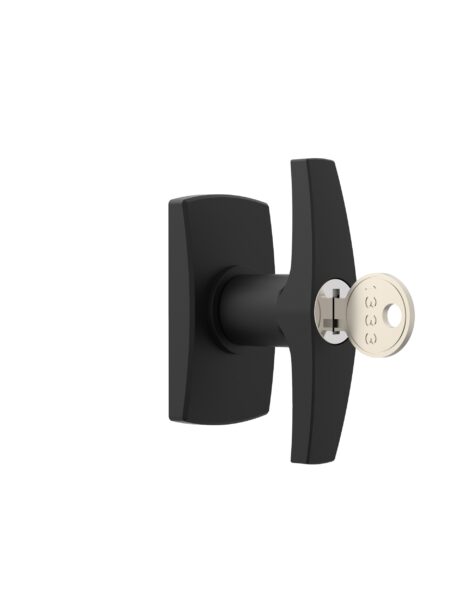

Short Escutcheon with T-Handle H405
A short length escutcheon complete with a T-handle lock. With a polyamide 30% glass fiber body for strength and durability, the H405 is available with a number of options and choice of 1-point, 2-point or 3-point cam or rod-latch system.
Lock Options
| Product Code | Combinations | Lock Type | Panel Thickness | Inquire |
|---|---|---|---|---|
| H405 | 500 | T-Handle | 1 - 2.5 | Contact Sales |
Standard Features
- Lock type: T-Handle
- Movement: 180° clockwise or 180° anti clockwise
- Combinations: 500
- Panel thickness: 1mm – 2.5mm please state when ordering
- Standard finish: Black 9005 RAL
- Available with 1, 2, 3 point cam or rod-latch system: please state when ordering
- Longer length escutcheon also available: see Escutcheon H407
Optional features – please contact sales department to discuss
- Customized printed logo
- IP65 water resistant available on request
- UL94 V0 flame resistant available on request (minimum order quantity applies)
- Alternative colors and materials available upon request
Additional Information
Short Escutcheon with T-Handle H405 technical drawing
