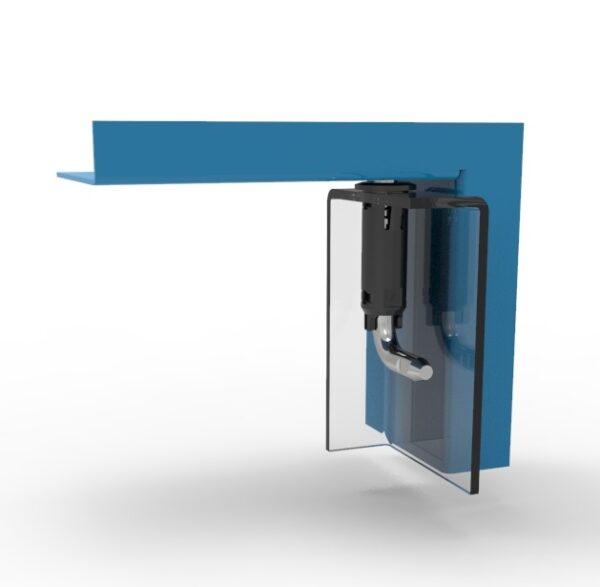

Pin Hinge Z400
A Pin Hinge with a maximum rotation angle of 110°. The hinge allows for quick installation and removal of doors by pulling the spring-loaded pin. Available with three different panel thicknesses, two different head heights and a straight or angled pin, these hinges are widely used in all types of laboratory cabinets, cupboards and lockers.
Lock Options
| Product Code | Material | Inquire |
|---|---|---|
| Z400 | PA6 | Contact Sales |
Standard Features
- Quick installation and removal of door by pulling the spring-loaded pin
- Panel thickness: 0.8mm – 1.2mm; 1.2mm – 1.7mm; 1.7mm – 2.2mm
- Head height: 7mm; 8mm
- Shape of pin: Straight or angled
- Standard finish: Zinc plated
- Standard colour: Black, other colours available on request
- Material: PA6
Additional Information
Pin Hinge Z400 technical drawing
| Product Number | Material | Color | Shape of Pin | Dimensions B & C | Panel Thickness |
| Z400 | PA6 | 9005
Black Standard |
1*
Straight |
1
B = 8,0 mm C = 1,5 mm |
1
0,8 – 1,2 mm |
| Other RAL*
Non-standard |
2
Angled |
2
B = 7,0 mm C = 2,5 mm |
2
1,2 – 1,7 mm |
||
| 3
1,7 – 2,2 mm |
|||||
| Example | |||||
| Z400 | PA | 9005 | 2 | 2 | 2 |
*Available on request
