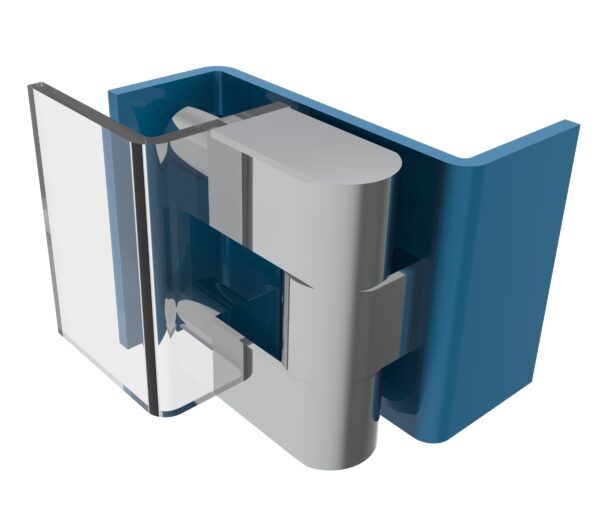

External Hinge Z308
An external steel hinge with a 180° maximum hinge rotation angle. The hinge is ideal for use on large enclosure doors such as cable box enclosures as it can hold the door open or closed.
Lock Options
| Product Code | Material | Max Hinge Rotation Angle | Inquire |
|---|---|---|---|
| Z308 | Steel | 180° | Contact Sales |
Standard Features
- Pin manufactured from steel
- Fixing nut not included in the set
Additional Information
External Hinge Z308 technical drawing
| Product Number | Material | Optional finish | ||
| Z308 | S Steel |
7 B Nickel plated |
||
| 2 A
Chrome plated |
||||
| 2 C
Satin Chrome plated |
||||
| 6 A
Zinc plated |
||||
| 8 H
Cataphoresis |
||||
| Example | ||||
| Z308 | S | 8 H | ||
