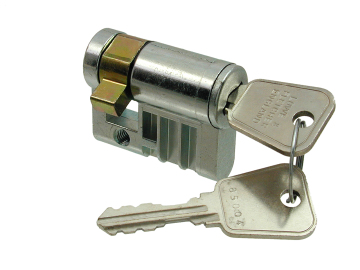

Euro Profile Lock 3409
A euro profile lock available in zinc plate, chrome or brass.
Lock Options
| Product Code | Key Series | Combinations | Head Width | Finish | Movement | X Dimension | Y Dimension | Inquire |
|---|---|---|---|---|---|---|---|---|
| 3408 | 200 | 17 | Zinc Plate | 7 | 30 | 40 | Contact Sales | |
| 3409 | 2000 | 17 | Zinc Plate | 7 | 30 | 40 | Contact Sales | |
| 3411 | 2000 | 17 | Brass, Chrome | 7 | 30 | 40 | Contact Sales | |
| 3413 | 2000 | 17 | Brass, Chrome | 7 | 60 | 70 | Contact Sales | |
| 3415 | 2000 | 17 | Brass, Chrome | 7 | 40 | 50 | Contact Sales | |
| 3417 | 200 | 17 | Zinc Plate | 7 | 40 | 50 | Contact Sales | |
| 3419 | 2000 | 17 | Zinc Plate | 7 | 40 | 50 | Contact Sales | |
| 3420 | 200 | 17 | Zinc Plate | 7 | 60 | 70 | Contact Sales | |
| 3423 | 2000 | 17 | Zinc Plate | 7 | 60 | 70 | Contact Sales |
Standard Features
- Standard movements: 7 (360° key free 12 o’clock and 6 o’clock)
- Lock Combinations: 200 – 2,000
- Standard finish: Zinc plate, Chrome or Brass effect
- M Keyed system supplied to order only
- Supplied with M5 x 40mm pan head screw
- Dimension ‘X’ and ‘Y’ specification: see ‘Lock Options’ table
Additional Information
Euro Profile Lock 3409 technical drawing
