Lock Options
| Product Code | Key Series | Housing Mounting | Combinations | Body Length | Head Width | Head Depth | Finish | Head Shape | Max Panel Thickness | Movement | Thread | X Dimension | Y Dimension | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B811 | Nut mounting | 200 | 9.5 | 18 | 3.3 | Black Chrome | Conical | 4 | 7 | M5 | 26.5 | 18.2 | Contact Sales | |
| B812 | Nut mounting | 200 | 9.5 | 18 | 3.3 | Black Chrome | Conical | 7 | M6 | 34.7 | 23.3 | Contact Sales | ||
| B813 | Nut mounting | 200 | 9.5 | 18 | 3.3 | Black Chrome | Conical | 7 | M6 | 42.7 | 28.3 | Contact Sales |
Standard Features
- Standard movements: 7
- Lock Combinations: 200
- Standard finish: Black chrome
- Panel thickness: 4mm
- Mounting hole shape: Double D
- M Keyed system supplied to order only
Additional Information

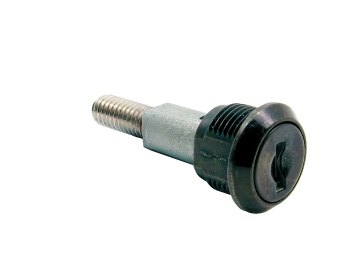

9.5mm Special Lock B811 technical drawing
