31mm Pedestal Lock 5804

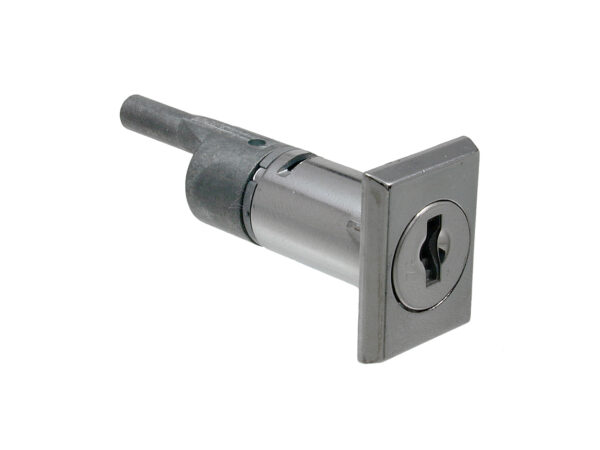

A 31mm Pedestal Lock 5804 available with a cam drive or pinion.

Featured Technicals
31mm Pedestal Lock 5804 Technical Drawing
Lock Description

This lock works with a locking bar and is ideal for items such as desk drawer units.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Height Head Width Head Depth Head Shape Enquire
5804 200 31 23 17 3 Square
5806 200 31 16 16 3 Conical
Standard Features
  • Standard movements: 3, 4 (Cam drive); 7 (Pinion drive only)
  • Lock Combinations: 200 (130 pinion only)
  • Standard finish: Bright chrome, satin chrome, barrel nickel
  • Fixing hole shape: Round
  • M Keyed system supplied to order only
  • Locking bar movement: 8mm (cam drive), 30mm (pinion drive 360° rotation)
  • ‘X’ Actuator length: 41mm or 47mm
  • Housing fixing: Horseshoe clip or Spring clip – Please specify when ordering
  • Pinion option available: Please specify when ordering

Additional information

31mm Pedestal Lock 5804 technical drawing
