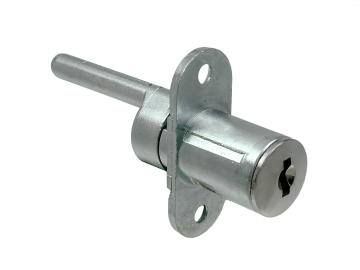

22mm Pedestal Lock 5640

A series of 22mm Pedestal Locks.

Featured Technicals
22mm Pedestal Lock 5640 Technical Drawing
Lock Description

This lock has a removable barrel and is available in a number of finishes making it ideal for use on items such as desk drawer units.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Flange Head Shape Housing Fixing Lock Fixing Enquire
5640 200 22 16.5 22 Double Cylindrical Screw Fix Vertical
5641 200 22 16.5 22 Double Cylindrical Screw Fix Horizontal
5642 200 22 16.5 22 Single Top Cylindrical Screw Fix Vertical
5643 200 22 16.5 22 Single RH Cylindrical Screw Fix Horizontal
5644 200 22 16.5 22 Single Bottom Cylindrical Screw Fix Vertical
5645 200 22 16.5 22 Single LH Cylindrical Screw Fix Horizontal
Standard Features
  • Standard movements: 3, 4
  • Lock Combinations: 200 (500 on request)
  • Standard finish: Bright chrome, bright nickel, black chrome
  • Fixing hole shape: Round with screw fixing (see technical drawing)
  • M Keyed system supplied to order only
  • X = Actuator lengths: 20, 25, 32, 40, 45 & 55mm
  • Rosette 7008003: available on request
  • Locking bar available: see Accessories

Additional information

22mm Pedestal Lock 5640 technical drawing
