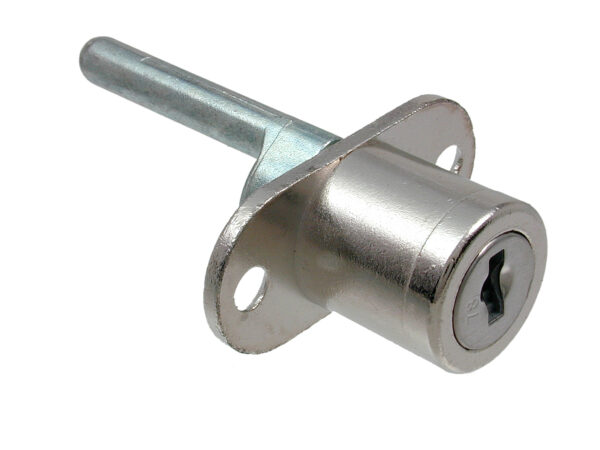

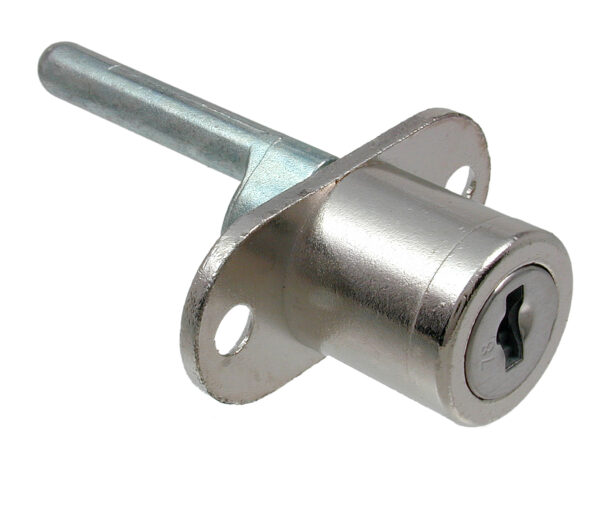

19mm or 23mm Pedestal Lock 5817
A range of 19mm or 23mm pedestal locks available in a variety of finishes and actuator lengths. This lock is ideal for use on desk pedestals and desk drawer units.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | A Dimension | Flange | Head Shape | Y Dimension | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|
| 5817 | 200 | 19 | 19 | 19 | 19 | Double | Cylindrical | 19 | Contact Sales | |
| 5840 | 200 | 19 | 16.5 | 19 | 16.5 | Double | Cylindrical | 19 | Contact Sales | |
| 5841 | 200 | 19 | 16.5 | 19 | 16.5 | Double | Cylindrical | 19 | Contact Sales | |
| 5842 | 200 | 23 | 16.5 | 23 | 16.5 | Single Top | Cylindrical | 19 | Contact Sales | |
| 5843 | 200 | 19 | 16.5 | 19 | 16.5 | Single RH | Cylindrical | 19 | Contact Sales | |
| 5844 | 200 | 19 | 16.5 | 19 | 16.5 | Single Bottom | Cylindrical | 19 | Contact Sales | |
| 5845 | 200 | 19 | 16.5 | 23 | 16.5 | Single LH | Cylindrical | 19 | Contact Sales | |
| 5846 | 200 | 23 | 16.5 | 23 | 16.5 | Double | Cylindrical | 23 | Contact Sales | |
| 5847 | 200 | 23 | 16.5 | 23 | 16.5 | Double | Cylindrical | 23 | Contact Sales | |
| 5848 | 200 | 23 | 16.5 | 23 | 16.5 | Single Top | Cylindrical | 23 | Contact Sales | |
| 5849 | 200 | 23 | 16.5 | 23 | 16.5 | Single RH | Cylindrical | 23 | Contact Sales | |
| 5850 | 200 | 23 | 16.5 | 23 | 16.5 | Single Bottom | Cylindrical | 23 | Contact Sales | |
| 5851 | 200 | 23 | 16.5 | 23 | 16.5 | Single LH | Cylindrical | 23 | Contact Sales |
Standard Features
- Standard movements: 3, 4
- Lock Combinations: 200 (1,000 on request)
- Standard finish: Bright chrome, barrel nickel, black
- Mounting hole shape: Round with screw fixing (see technical drawing)
- M Keyed system supplied to order only
- X = Actuator lengths: 20mm, 25mm, 32mm, 40mm, 45mm & 55mm
- Rosette: Available on request
- Locking bar available: see Accessories
Additional Information
19mm or 23mm Pedestal Lock 5817 technical drawing
