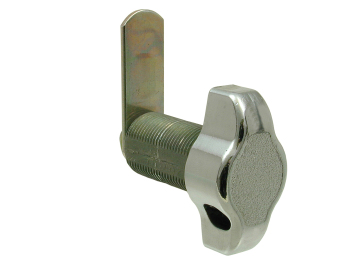

31.7mm Latchlock 4448

A series of 31.7mm latchlocks available in bright chrome.

Featured Technicals
31.7mm Latchlock 4448 Technical Drawing
Lock Description

Secured with a padlock, this lock is ideal for applications such as Metal Office Furniture.

Have a question?
Lock Options
Product Code Body Length Head Height Head Width Head Depth Cam Fixing Finish Housing Fixing Shackle Diameter Enquire
4448 31.7 46 10.4 15 Eclip Bright Chrome Nut Fixing Min 5 - Max 7.5
4452 31.7 46 10.4 15 Screw Bright Chrome Nut Fixing Min 5 - Max 7.5
Standard Features
  • Standard movements: 1, 2
  • Lock Combinations: Padlock
  • Standard finish: Bright chrome
  • Panel thickness: Contact sales department
  • Fixing hole shape: Double D
  • Recommended shackle diameter: 5-7.5mm
  • Comprehensive range of Cams available: See Cams

Additional information

31.7mm Latchlock 4448 technical drawing
