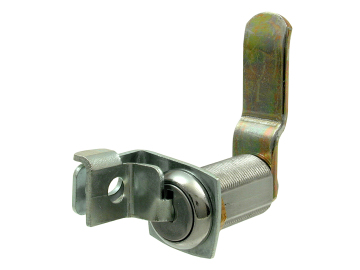

20mm-30mm Latchlock 4419

A range of 20 to 30mm latchlocks available in bright chrome with a stainless steel cap.

Featured Technicals
20mm-30mm Latchlock 4419 Technical Drawing
Lock Description

Secured with a padlock, this lock is ideal for applications such as Metal Office Furniture.

Have a question?
Lock Options
Product Code Body Length Head Depth Finish Head Shape Housing Fixing Max Panel Thickness Shackle Diameter Enquire
4417 20 29 Bright Chrome Round Nut Fixing 27 7
4418 25 29 Bright Chrome Round Nut Fixing 27 7
4419 30 29 Bright Chrome Round Nut Fixing 27 7
Standard Features
  • Standard movements: 1, 2
  • Lock Combinations: Padlock
  • Standard finish: Bright chrome with a stainless steel cap
  • Panel thickness: 27mm
  • Fixing hole shape: Double D
  • ‘X’ dimension: Body Length
  • Recommended shackle diameter: 7mm
  • Comprehensive range of Cams available: See Cams

Additional information

20mm-30mm Latchlock 4419 technical drawing
