22.4mm Freewheel Latchlock A208

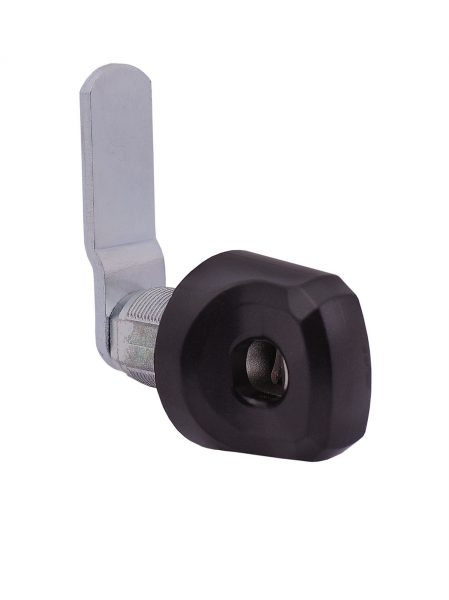

A 22.4mm freewheel latchlock A208.

Featured Technicals
22.4mm Freewheel Latchlock A208 Technical Drawing
Lock Description

Once the padlock is fixed through the head of the lock, the knob rotates 360° so the lock cannot be leveraged and broken. This is a very secure lock and ideal for applications such as Lockers.

Have a question?
Lock Options
Product Code Body Length Head Height Head Depth Finish Fixing Hole Size Shackle Diameter Enquire
A208 22.4 31 15 Black KTL 19.1 x 16.1 Min 6 - Max 8
Standard Features
  • Standard movement: 1, 2
  • Recommended shackle diameter: 6 – 8mm
  • Standard finish: Black (KTL), Bright Chrome, Nickel Plated
  • Panel thickness: 14.5mm nut fixing, 0.8 – 1.2mm horseshoe clip fixing
  • Fixing hole shape: Double D (19.1 x 16.1)
  • Dimension ‘B’ & ‘X’ Specification: See Cams

Additional information

22.4mm Freewheel Latchlock A208 technical drawing
