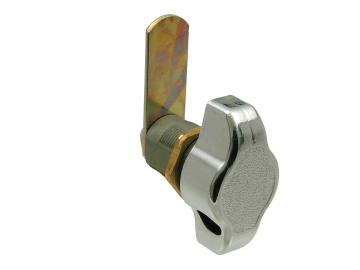

22.4mm Latchlock B562

A 22.4mm latchlock B562 available in bright chrome.

Featured Technicals
22.4mm Latchlock B562 Technical Drawing
Lock Description

Secured with a padlock, this lock is ideal for applications such as Metal Office Furniture.

Have a question?
Lock Options
Product Code Body Length Head Height Head Width Head Depth Finish Housing Fixing Movement Shackle Diameter Enquire
B562 22.4 46 10.4 15 Bright Chrome Clip Fix 1 Min 5 - Max 7.5
Standard Features
  • Standard movements: 1
  • Lock Combinations: Padlock
  • Standard finish: Bright chrome
  • Panel thickness: Contact sales department
  • Fixing hole shape: Double D
  • Recommended shackle diameter: 5-7.5mm
  • Dimension ‘B’ specification: See Cams

Additional information

22.4mm Latchlock B562 technical drawing
