Rosettes
| Code | Description | Dimensions |
| 70080037B | Rosette | 16.3mm nozzle |
| C4236 | Rosette | 17.8mm nozzle |
Please state when ordering which Rosette is required
Search our website

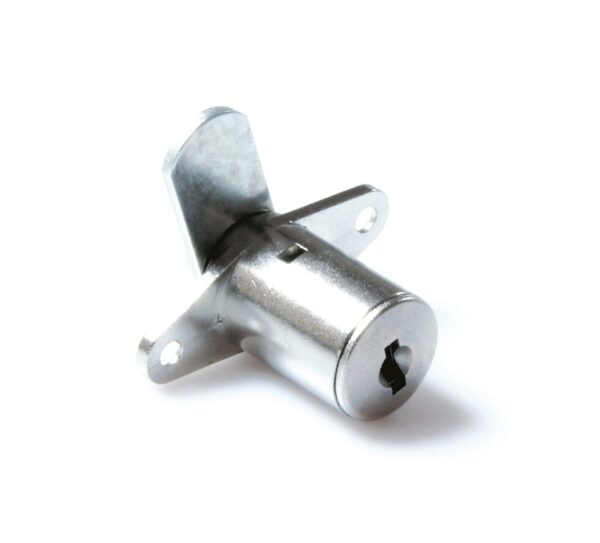

22mm Tambour Lock with Removable Barrel 0411
A series of 22mm tambour locks available in bright nickel or black KTL. This lock has a removable barrel and is ideal for use on Office Furniture including Tambour Door Cupboards and Cabinets.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Depth | Flange | Movement | Nozzle Diameter | Inquire |
|---|---|---|---|---|---|---|---|---|
| 0411 | 500 | 22 | 2 | Double | 3 | 16.3 | Contact Sales | |
| 0411 B | 500 | 22 | 2 | Double | 3 | 17.8 | Contact Sales | |
| 0412 | 500 | 22 | 2 | Double | 3 | 16.3 | Contact Sales | |
| 0412 B | 500 | 22 | 2 | Double | 3 | 17.8 | Contact Sales | |
| 0413 | 500 | 22 | 2 | Single Top | 3 | 16.3 | Contact Sales | |
| 0413 B | 500 | 22 | 2 | Single Top | 3 | 17.8 | Contact Sales | |
| 0414 | 500 | 22 | 2 | Single RH | 3 | 16.3 | Contact Sales | |
| 0414 B | 500 | 22 | 2 | Single RH | 3 | 17.8 | Contact Sales | |
| 0415 | 500 | 22 | 2 | Single Bottom | 3 | 16.3 | Contact Sales | |
| 0415 B | 500 | 22 | 2 | Single Bottom | 3 | 17.8 | Contact Sales | |
| 0416 | 500 | 22 | 2 | Single LH | 3 | 16.3 | Contact Sales | |
| 0416 B | 500 | 22 | 2 | Single LH | 3 | 17.8 | Contact Sales |
Standard Features
- Standard movements: 3 (180° CW)
- Nozzle diameter: 16.3mm or 17.8mm
- Lock Combinations: 500
- Standard finish: Bright nickel, black KTL
- Comprehensive range of Cams available: See Cams
- Can be supplied with Master Key and Sub-Master Key systems (see below)
Additional Information
22mm Tambour Lock with Removable Barrel 0411 technical drawing
Accessories
Key Options
Metal Keys
| Key Code | Key Combinations |
| B8842 | SMT001 – SMT25 |
| B8843 | SMT301 – SMT550 |
Capped Keys
| Key Code | Key Combinations |
| B8849 | SMT001 – SMT250 |
| B8850 | SMT301 – SMT550 |
Split Keys
| Key Code | Key Combinations |
| B8752 | SMT001 – SMT250 |
| B8765 | SMT301 – SMT550 |
General Master Key
| Key Code | |
| MAS/S04 | Opens the complete range of combinations in this series |
Sub-Master Keys
| Key Code | Key Combinations |
| SM1-04 | SMT001 – SMT250 |
| SM2-04 | SMT301 – SMT550 |
Removal Key
| Key Code | |
| B8754 | Barrel extraction key for all combinations in this series |
