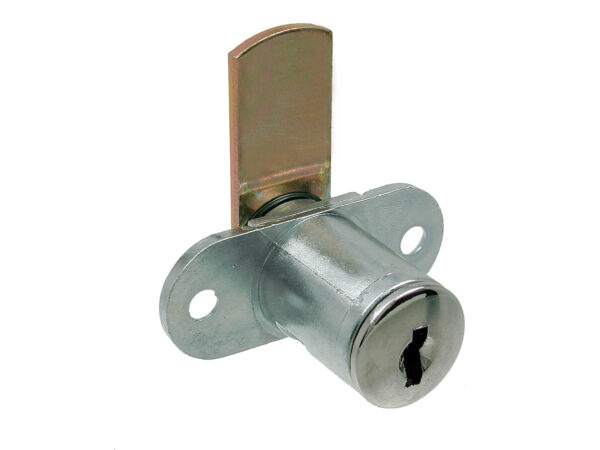

22mm Tambour Lock 5611

A 22mm Tambour Lock 5611 available in a number of finishes.

Featured Technicals
22mm Tambour Lock 5611 Technical Drawing
Lock Description

This lock is ideal for use on Tambour Door Cupboards and Cabinets.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Head Shape Housing Fixing Lock Fixing Enquire
5611 200 22 16.5 22 Cylindrical Screw Fix Horizontal
5612 200 22 16.5 22 Cylindrical Screw Fix Vertical
Standard Features
  • Standard movements: 3, 4, 8, 9
  • Lock Combinations: 200 (500 on request)
  • Standard finish: Bright chrome, bright nickel, black chrome
  • Fixing hole shape: Round with screw fixing (see technical drawing)
  • M Keyed system supplied to order only
  • Rosette 7008003: Available on request
  • Use ‘T’ cams as specified: See Cams page

Additional information

22mm Tambour Lock 5611 technical drawing
