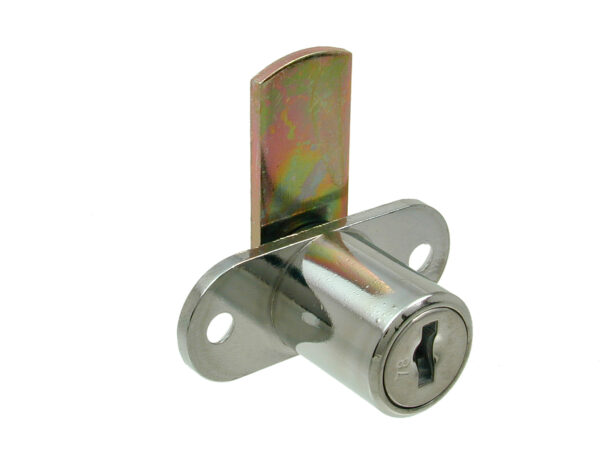

19mm Tambour Lock 5811

A series of 19mm Tambour Locks available in Nickel or Black.

Featured Technicals
19mm Tambour Lock 5811 Technical Drawing
Lock Description

This lock is ideal for use on Tambour Door Cupboards and Cabinets.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Flange Head Shape Housing Fixing Lock Fixing Enquire
5811 200 19 16.3 19 Double Cylindrical Screw Fix Horizontal
5812 200 19 16.3 19 Double Cylindrical Screw Fix Vertical
5813 200 19 16.3 19 Single Top Cylindrical Screw Fix Vertical
5814 200 19 16.3 19 Single Top Cylindrical Screw Fix Horizontal
5815 200 19 16.3 19 Single Bottom Cylindrical Screw Fix Vertical
5816 200 19 16.3 19 Single Bottom Cylindrical Screw Fix Horizontal
Standard Features
  • Standard movements: 8, 9
  • Lock Combinations: 200 (1,000 on request)
  • Standard finish: Barrel nickel, black
  • Fixing hole shape: Round with screw fixing (see technical drawing)
  • M Keyed system supplied to order only
  • Rosette 7008003: Available on request
  • Use ‘T’ cams as specified: See Cams page

Additional information

19mm Tambour Lock 5811 technical drawing
