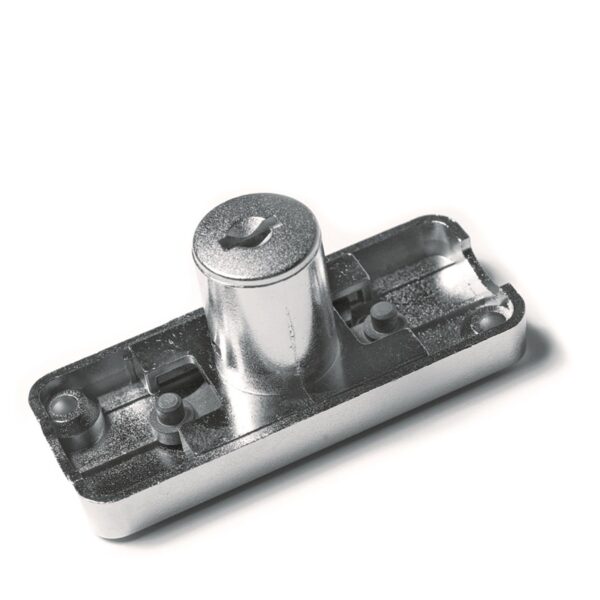

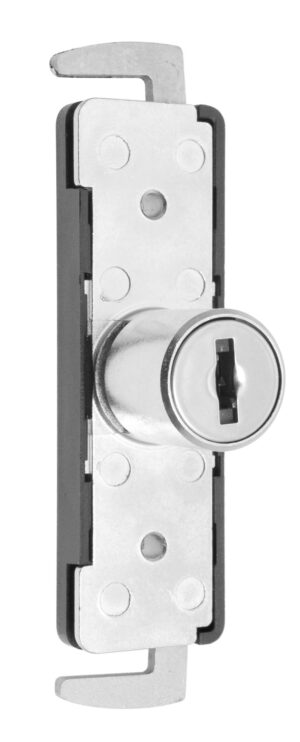

22mm Multi Point Lock with Removable Barrel 0488

A 22 mm Multi-Point Lock 0488 with a removable barrel.

Lock Description

These locks are ideal for use on applications such as cupboards, drawers and desks.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Depth Handed Movement Nozzle Diameter Enquire
0488 500 22 2 Right 3 16.3
0488 B 500 22 2 Right 3 17.8
Standard Features
  • Standard movements: 3 (180° CW)
  • Nozzle diameter: 16.3mm or 17.8mm
  • Lock Combinations: 500
  • Standard finish: Bright nickel, black KTL
  • Can be supplied with Master Key and Sub-Master Key systems

Additional information

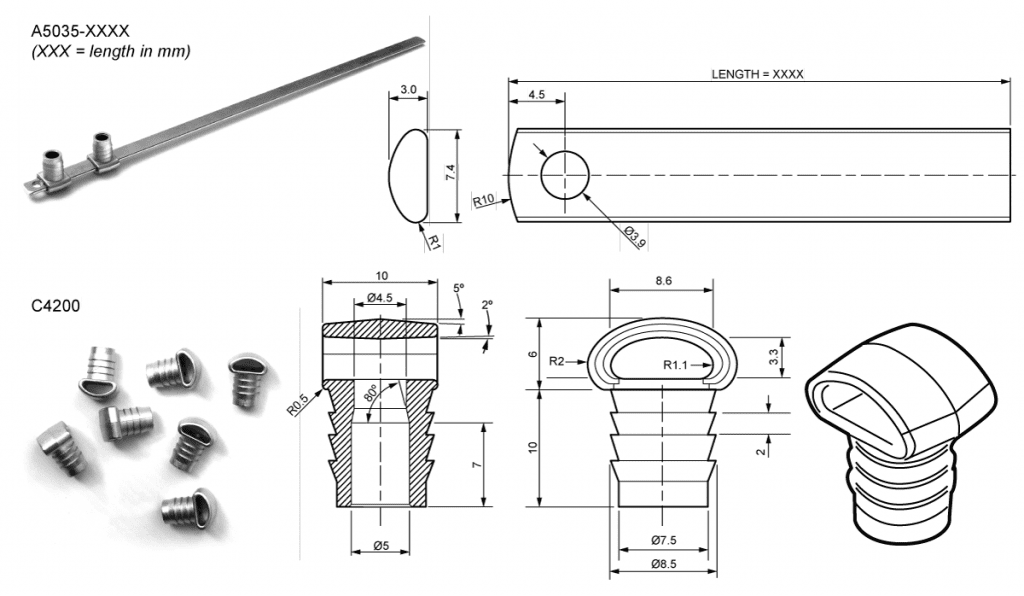

22mm Multi Point Lock with Removable Barrel 0488 technical drawing

Product code  Description  Notes
 A5035 – xxxx  Nickel plated rod to suit the 0488 multi-point lock  Can be supplied in standard 1 – 2 metre lengths or cut to suit
 C4200  Quick fixing rod guide to suit the A5035 rod  Can be supplied with noise reduction peg

Key Options

Metal Keys

Key Code Key Combinations
B8842 SMT001 – SMT250
B8843 SMT301 – SMT550

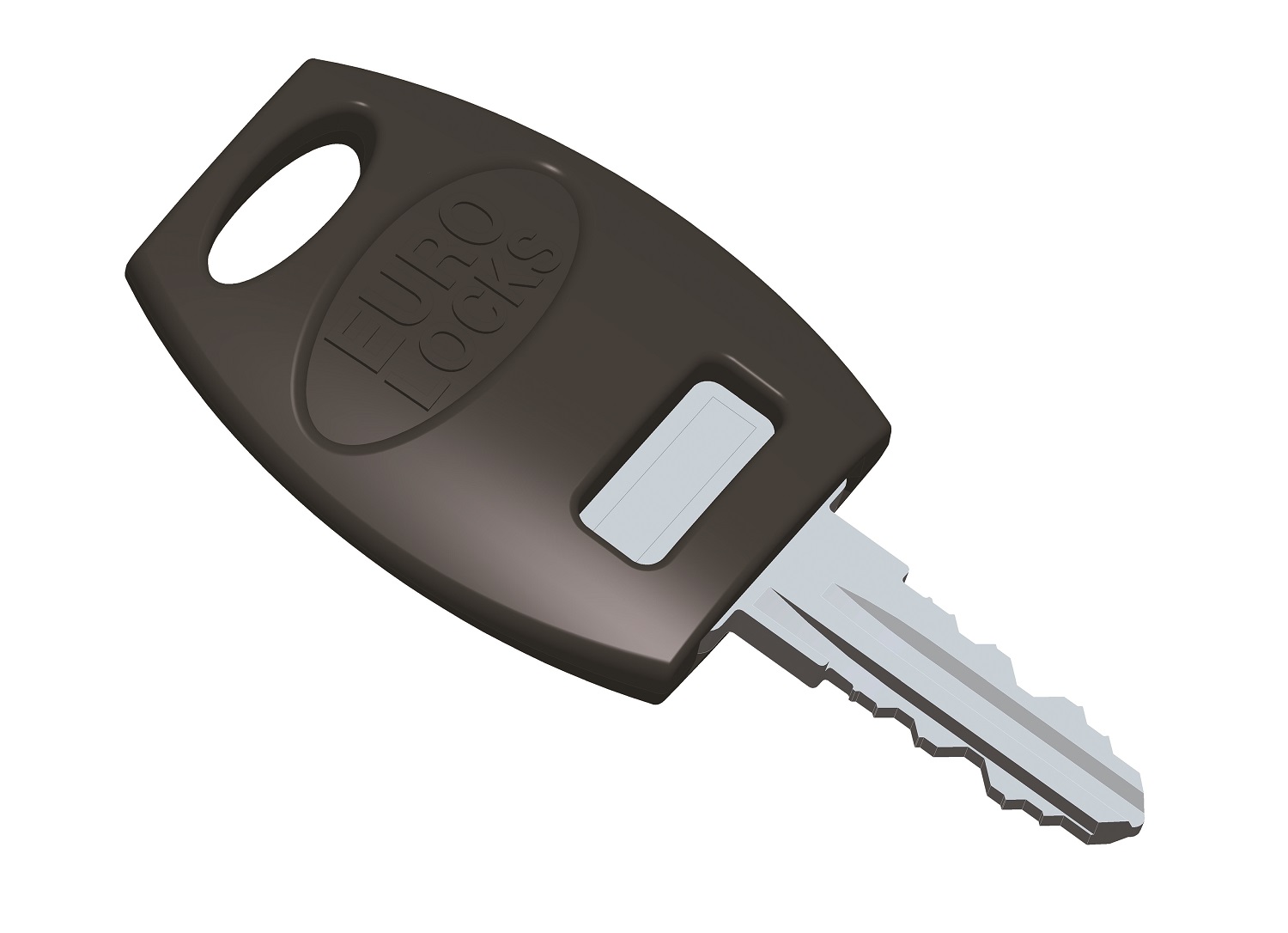

Capped Keys

Key Code Key Combinations
B8849 SMT001 – SMT250
B8850 SMT301 – SMT550

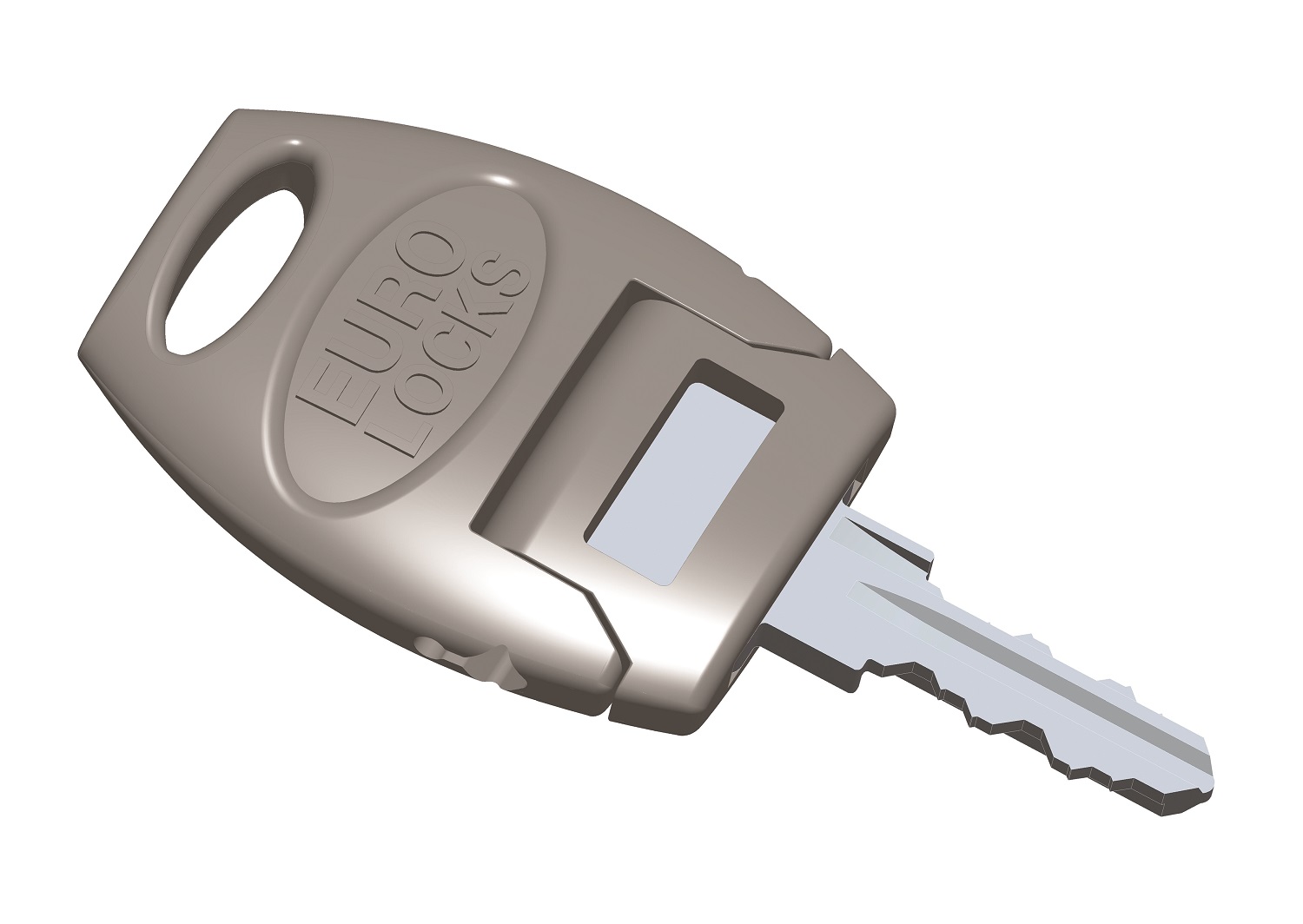

Split Keys

Key Code Key Combinations
B8752 SMT001 – SMT250
B8765 SMT301 – SMT550

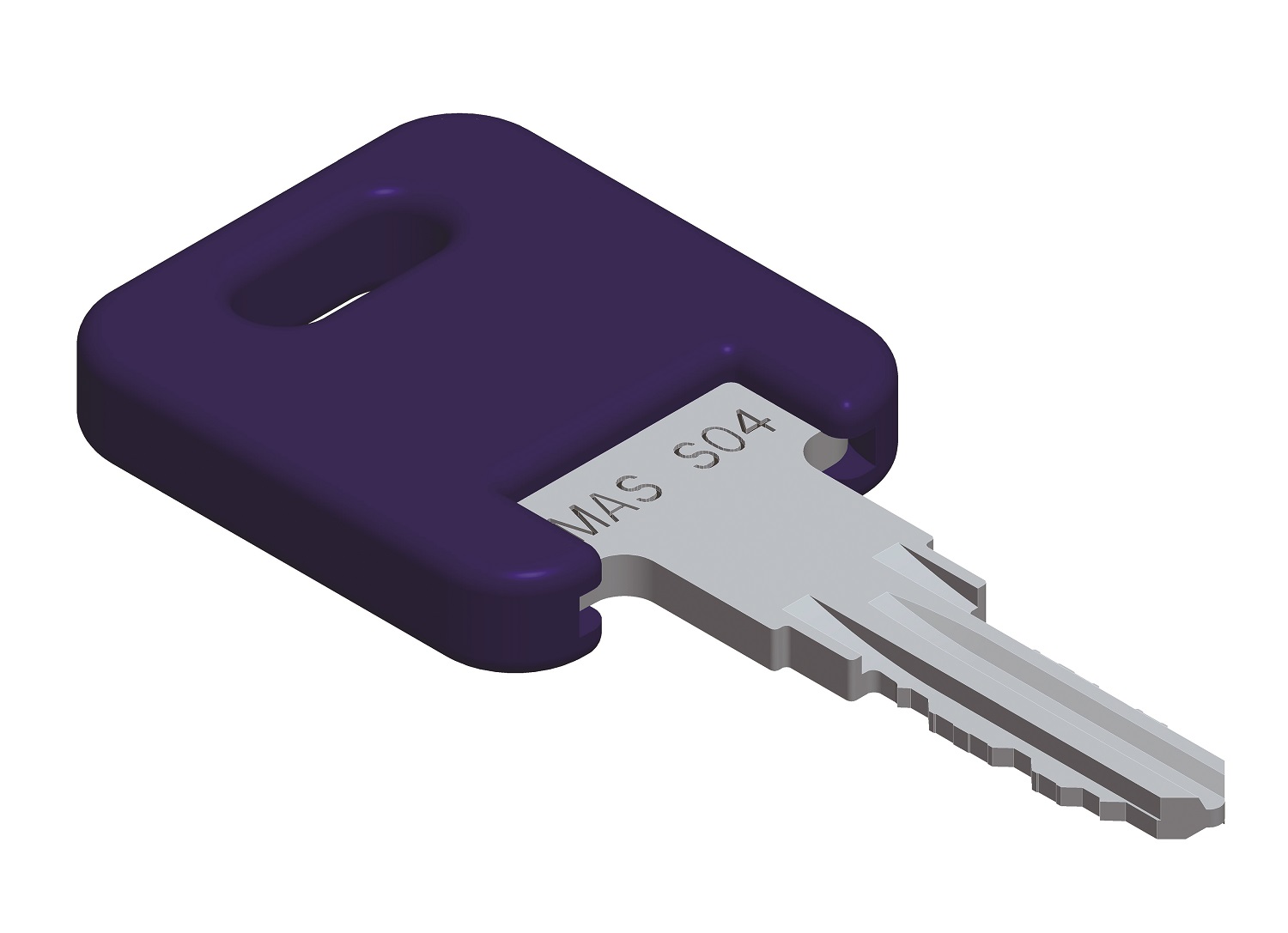

General Master Key

Key Code
MAS/S04 Opens the complete range of combinations in this series

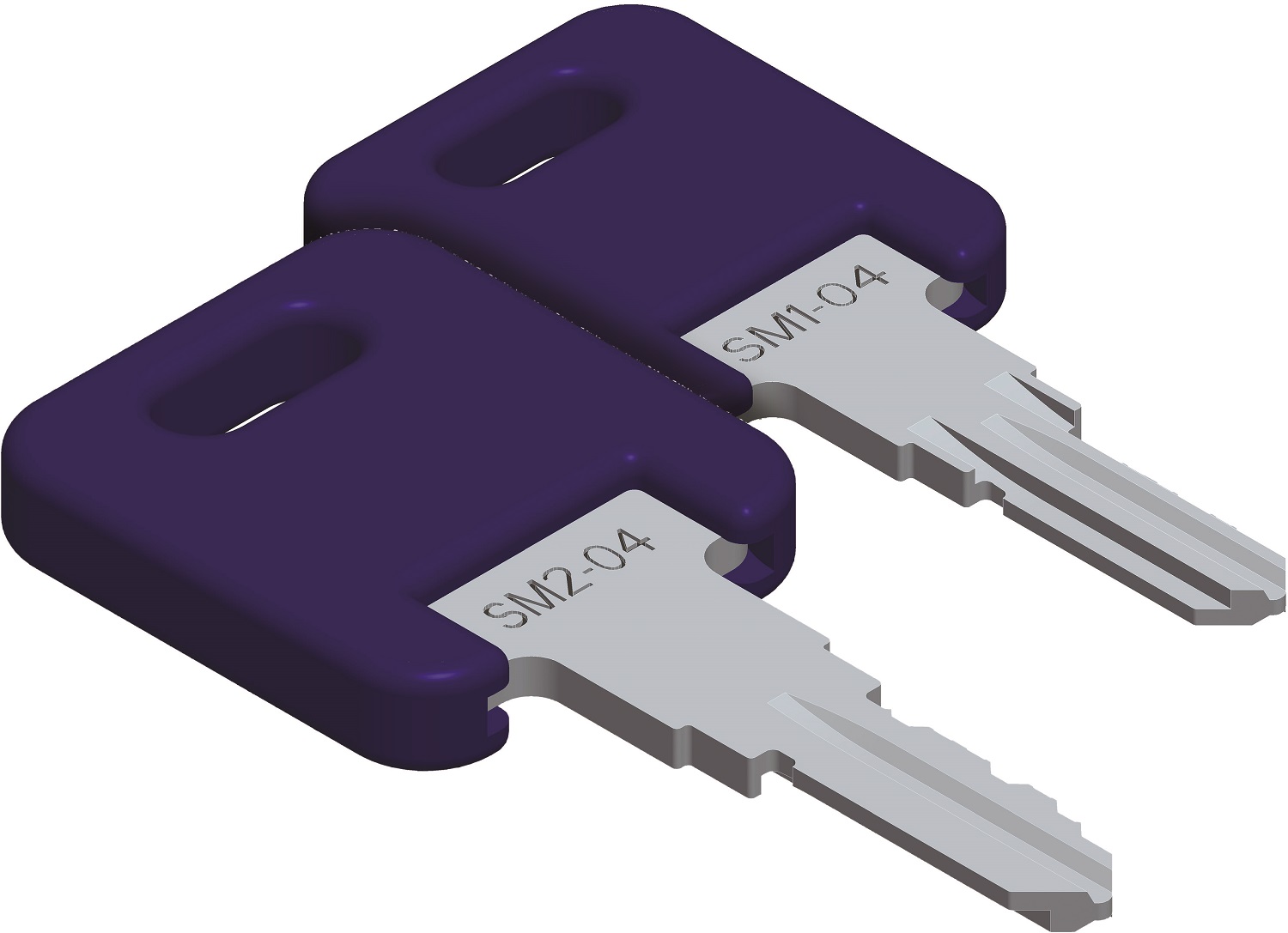

Sub-Master Keys

Key Code Key Combinations
SM1-04 SMT001 – SMT250
SM2-04 SMT301 – SMT550

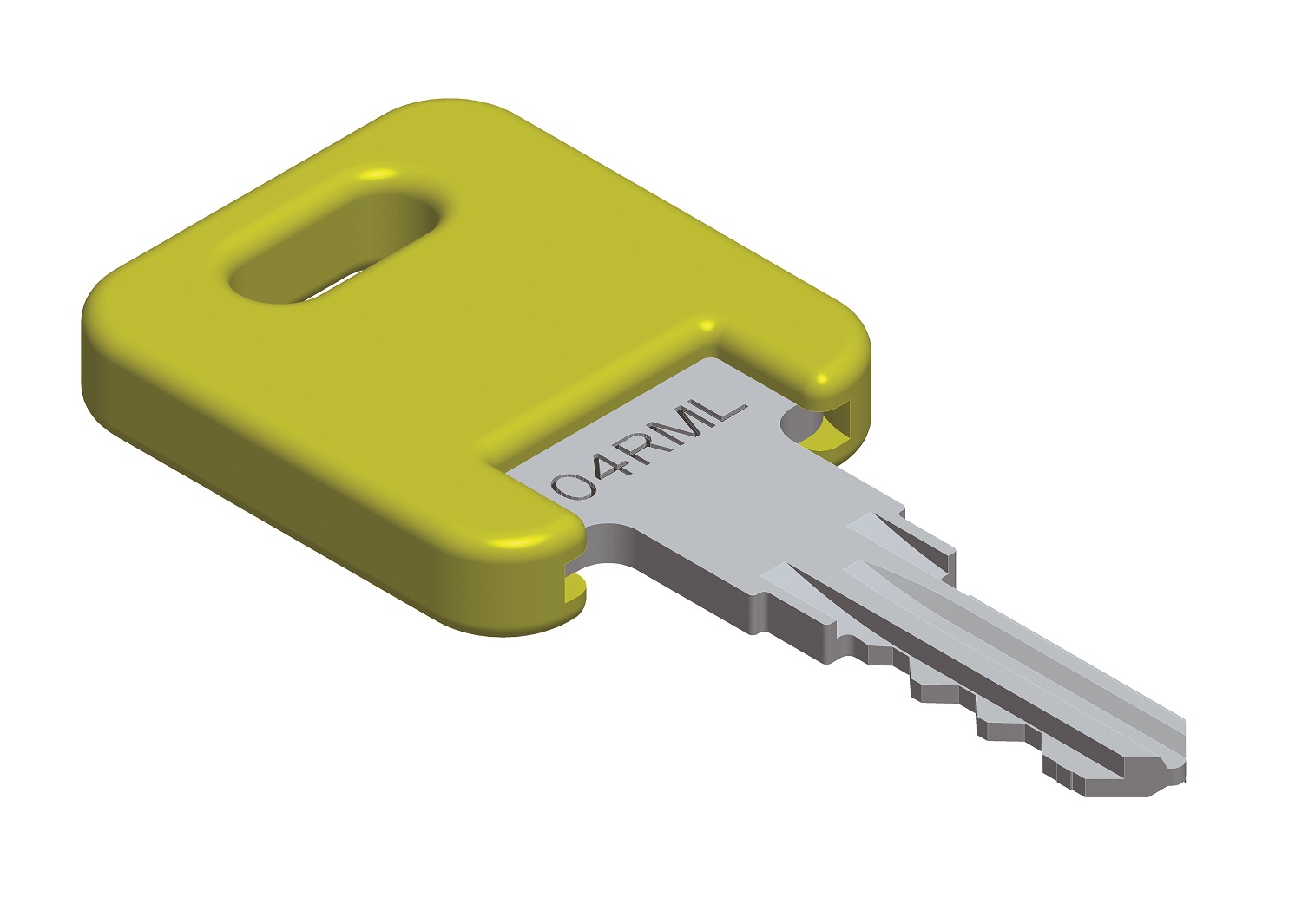

Removal Key

Key Code
B8754 Barrel extraction key for all combinations in this series
