22mm Multi Point Lock 5625

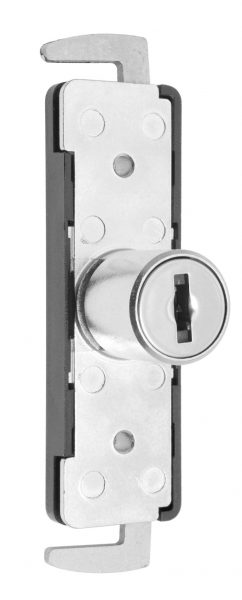

A 22mm Multi-Point Lock 5625 with a removable barrel.

Featured Technicals
22mm Multi Point Lock 5625 Technical Drawing
Lock Description

Available in Nickel, these locks are ideal for use on applications such as cupboards, drawers and desks.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Height Head Width Head Depth Barrel Finish Head Shape Housing Fixing Movement X Dimension Y Dimension Z Enquire
5625 200 9 16.3 16.3 22 Removable Barrel Nickel Cylindrical 3 22 16.3 16.5
5825 200 9 16.3 16.3 22 Non Removable Barrel Nickel Cylindrical Screw Fix 3 22 16.3 16.5
C523 2000 9 19.8 19.8 22 Removable Barrel Nickel Cylindrical 3 22 19.8 20
Standard Features
  • Standard movements: 3
  • Lock Combinations: 200-2,000 (5625 with 500 on request)
  • Standard finish: Nickel
  • Fixing hole shape: Round
  • M Keyed system supplied to order only

strong>Can be supplied with split key:

  • Rosette 70080037B: available with 5625 on request

Additional information

22mm Multi Point Lock 5625 technical drawing
