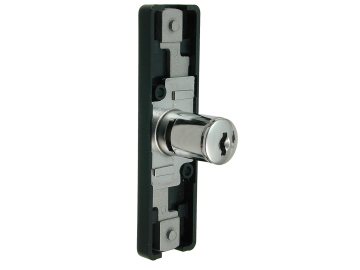

22mm-25mm Multi Point Lock 5688

A 22mm or 25mm Multi-Point Lock with a removable barrel.

Featured Technicals
22mm-25mm Multi Point Lock 5688 Technical Drawing
Lock Description

These locks are ideal for use on applications such as cupboards, drawers and desks.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Head Height Head Width Head Depth Head Shape Movement X Dimension Y Dimension Z Enquire
5687 200 7 16.3 16.3 22 Cylindrical 3 22 16.3 16.5
5688 200 7 16.3 16.3 25 Cylindrical 3 25 16.3 16.5
C522 2000 7 19.8 19.8 22 Cylindrical 3 22 19.8 20
Standard Features
  • Standard movements: 3
  • Lock Combinations: 200-2,000 (5687 & 5688 with 500 on request)
  • Standard finish: Bright chrome, bright nickel, black chrome
  • Fixing hole shape: Round
  • M Keyed system supplied to order only
  • Back plate: 5687 black nickel, 5688 black plastic
  • C522: Can be supplied with split key
  • Rosette 7008003: available with 5687 & 5688 on request

Additional information

22mm-25mm Multi Point Lock 5688 technical drawing
