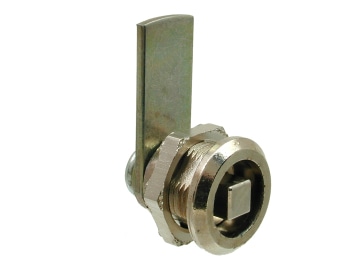

12.8mm Tool Operated Cam Lock B236
A range of cam locks operable by use of a special tool. With many different shape options available, these cam locks are ideal for use in sanitation and hygiene products in commercial washrooms and a wide variety of other applications where security is paramount.
Lock Options
| Product Code | Key Series | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Housing Fixing | Key Number | Movement | Inquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B236 | 12.8 | 20 | 3 | Screw + Washer | Bright Nickel | Round | F8088, F8412-C6M | 8 | Contact Sales | ||
| B826 | 12.8 | 20 | 3 | Screw + Washer | Bright Nickel | Round | 8 | Contact Sales | |||
| B884 | 12.8 | 20 | 3 | Screw + Washer | Bright Nickel | Round | B3085 | 8 | Contact Sales | ||
| B971 | 12.8 | 20 | 3 | Screw + Washer | Bright Nickel | Round | 8 | Contact Sales | |||
| B977 | 12.8 | 20 | 3 | Screw + Washer | Bright Nickel | Round | 8 | Contact Sales | |||
| C741 | 12.8 | 20 | 3 | Screw + Washer | Nickel | Round | 8 | Contact Sales | |||
| D219 | 12.8 | 20 | 3 | Screw + Washer | Nickel | Round | 8 | Contact Sales |
Standard Features
- Standard movements: 8
- Standard finish: Bright nickel
- Mounting hole shape: Squared
- Cam fixing: Screw & Washer
- Dimension ‘B’ Specification: See Cams
- Sealer ring available on request
Additional Information
12.8mm Tool Operated Cam Lock B236 technical drawing
