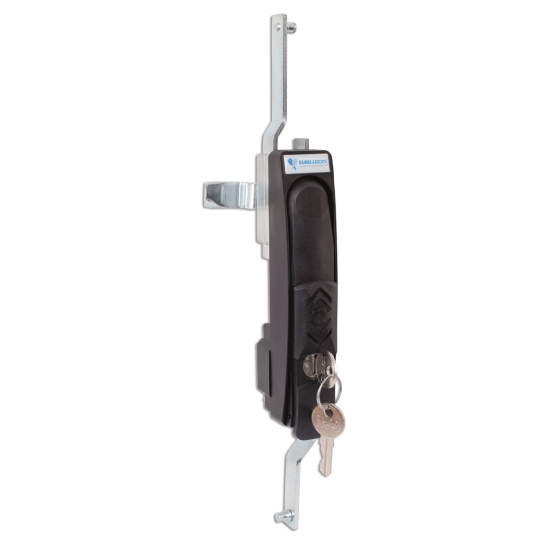

Swing Handle H826

A H826 swing handle with euro-profile cylinder, polyamide 30% glass fiber body for strength and durability, available with a number of options including IP65 water resistant or UL94 V0 flame resistant.

View Lock Details
Featured Technicals
Lock Description

The H826 has a pop-out swing handle that is available with a number of options, including a sliding dust cover, and choice of 1-point, 2-point or 3-point cam or rod-latch system. Contact us today for further information on +1 (616) 994 0490.

Have a question?
Lock Options
Product Code Max Panel Thickness Inquire
H826 1 – 2.5 Contact Sales
Standard Features
  • Lock type: Euro-profile cylinder
  • Panel thickness: 1mm – 2.5mm please state when ordering
  • Standard finish: Black 9005 RAL
  • Available with 1, 2, 3-point cam or rod-latch system: please state when ordering
  • Polyurethane sticker
  • Pop-out function

Optional features – please contact sales department to discuss

  • Customized logo
  • IP65 water resistant available on request
  • UL94 V0 flame resistant available on request (minimum order quantity applies)
  • Alternative colors and materials available upon request

Additional Information

Swing Handle H826 technical drawing

Part Number Guide

Product number  IP65 Panel thickness Pivot Material Color Sticker with logo
H826 0

No

1

1,0 – 1,5 mm

1

ZNAL

1

PA6 30GF

9005

Black – standard

0

Without logo

1

Yes

2

1,51 – 2,0 mm

2

Brass*

2

PA6 30GF V0*

Other RAL

On request*

1

With Euro-Locks logo

3

2,01 – 2,5 mm

2

With customers logo

 Example
H826 0 1 1 1 9005 1

*Available on request only
