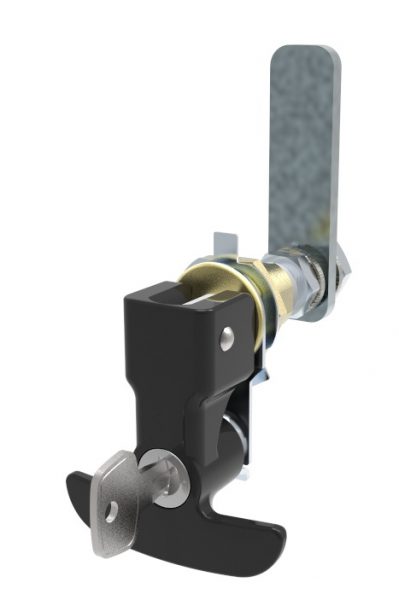

Heavy Duty Compression Latch A218

A heavy duty lift and turn compression latch complete with a range of locking options.

Lock Description

With an easy to grip T handle, this durable latch is designed for use in heavy duty applications such as access panels, exterior storage compartments and toolboxes and excavator flaps. When in the closed position, the latch provides a compressive seal that ensures doors and flaps remain closed in use despite vibrations and shocks. Simply lift the latch to release the compression and turn it to rotate the cam.

The stainless steel cam provides additional strength and corrosion resistance, whilst the cylinder is capped to prevent the ingress of dust and dirt.

Available with 200 different standard differs or bespoke locking systems and finishes on request.

For further information download the brochure or contact our sales team.

Have a question?
Lock Options
Product Code Key Series Combinations Body Length Body Height Body Width Body Depth Handle Depth Bowl Cam Fixing Finish Handle Height Handle Length Housing Fixing Lock Type Max Panel Thickness Stroke Enquire
A218 200 25.6 23 19 68 68 (Without Bowl) With Lock Plate Nut Black 67 65.6 Nut Fixing Compression Lock 8 6
Standard Features
  • Installation hole: see technical drawing
  • Material thickness: 0.6mm – 10mm
  • ‘X’ Dimension: at customers request, please confirm when placing order
  • Vibration-proof mounting
  • 200 standard differs available
  • Dust and particle protected locking cylinder
  • Stainless steel cams available in various designs
  • Bespoke locking systems and finishes available on reques

Additional information

Heavy Duty Compression Latch A218 technical drawing
