Flat External Hinge Z550
Upgrade your enclosures with a corrosion-resistant flat hinge engineered for style, strength and security.
Lock Description
Key Benefits
-
Exceptional corrosion resistance for long-lasting performance
-
Compliant to flammability class V0 for enhanced safety (on request only MOQ will apply)
-

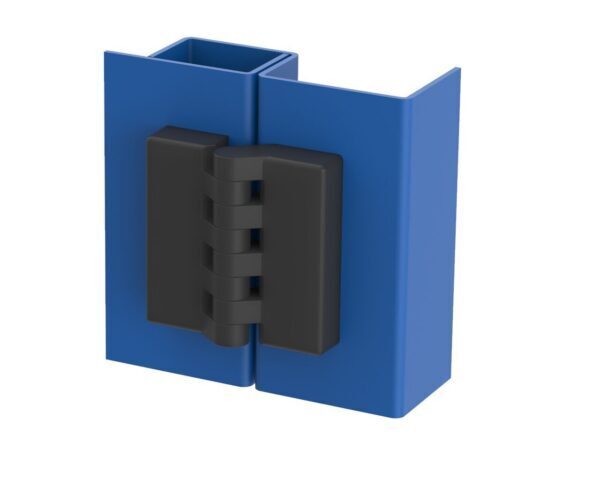

Enables a seamless, flush door-to-frame finish with a full 180° opening
-
Delivered fully assembled to save installation time
-
Fits a wide range of panel thicknesses with adjustable threaded pin options
Smart Design
-
Compact design for a modern aesthetic
-
Concealed hinge pin improves both appearance and security
-
Optional O-rings on threaded stud versions for added protection (IP)
Have a question?
Lock Options
| Product Code | Material | Inquire |
|---|---|---|
| Z550 | PA6 30GF | Contact Sales |
Standard Features
- Material: Glass fibre reinforced polyamide (PA6GF30)
- Compliant to flammability class V0 (on request only MOQ will apply)

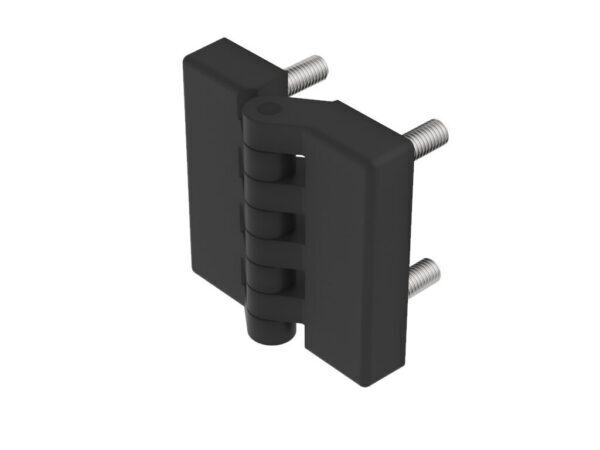

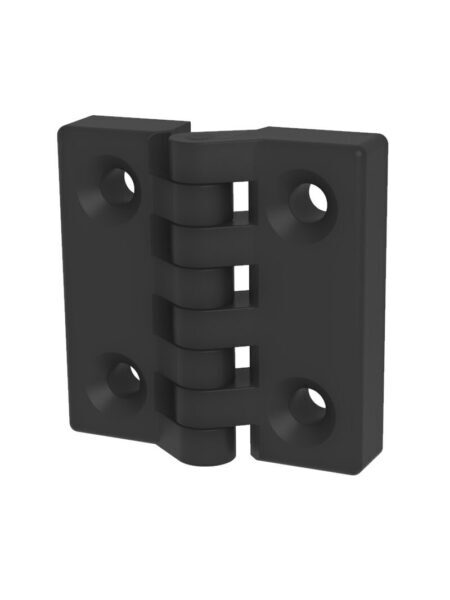

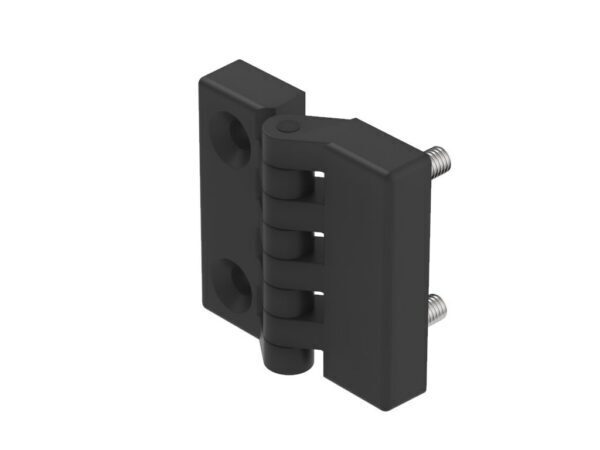

- Available in 3 variants: threaded pins, holes, mixed
- Screws and pins available in galvanized and stainless-steel versions
- Hinge opening angle: 180⁰
Additional Information
Flat External Hinge Z550 technical drawing
| Product Number | Hinge Version | L = Stud Height | Hinge Material | Pin Material | Stud Material | Colour | |||||
| Z550 | 1 | For countersunk screw M5 | 12 | 1 | PA6 30GF | 1 | Steel zinc plated | 0 | Without studs | 9005 | Black – standard |
| 2 | Threaded studs | 16 | 2 | PA6 30GF V0 | 2 | Stainless steel | 1 | Steel zinc plated | Other RAL | on request | |
| 3 | Holes + studs | 21 | 2 | Stainless steel | |||||||
