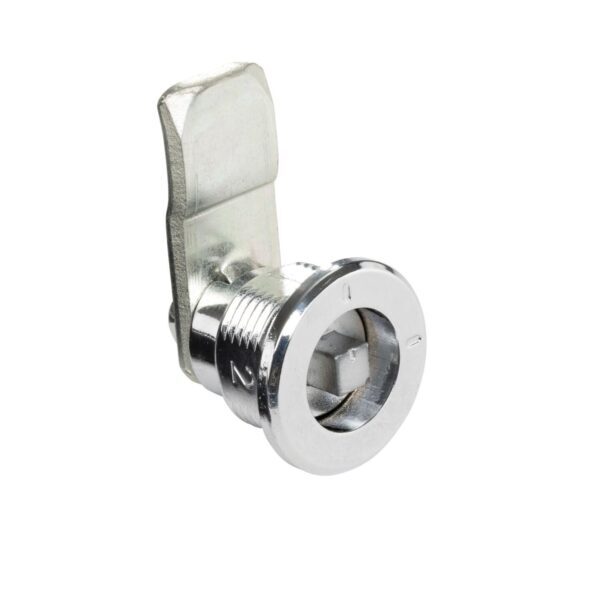

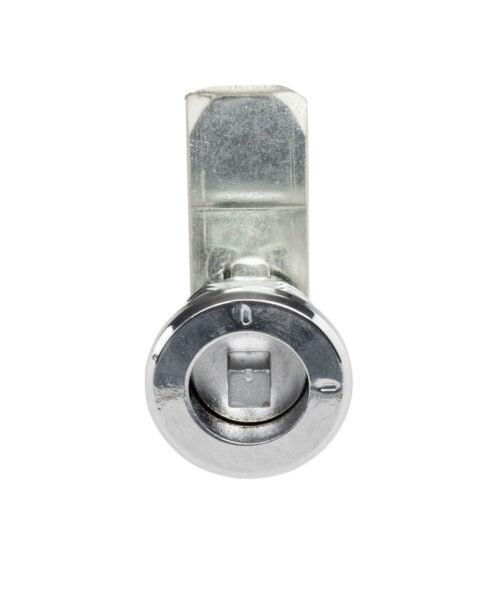

Quarter Turn Compression Lock F813
This quarter turn lock provides secure mechanical retention thanks to a spring-loaded compression system, requiring deliberate actuation. It’s perfect for applications where vibration resistance, tactile and visual feedback for locking is essential.
Lock Description
Typical Applications:
Designed for demanding industrial environments, this IP65-rated compression lock offers reliable sealing against dust and water ingress. It ensures secure closure, tactile locking feedback, and vibration resistance. Ideal for applications such as:
- Electrical enclosures
- Industrial control panels
- Transport machinery
- Construction machinery
Have a question?
Lock Options
| Product Code | Housing Mounting | Body Length | Head Shape | IP65 | Inquire |
|---|---|---|---|---|---|
| F813 | Nut Mounting | 18.6 | Round | Yes | Contact Sales |
Standard Features
- Spring-loaded compression mechanism: Push to engage, turn to lock
- Cam release travel: 1.7mm
- Keys available: DB5 / CM6 / CM8
- Housing head dimension: Ø 28mm
- Fixing options: Left or right-hand versions (select rotation direction based on door or panel configuration)
- Maximum panel thickness: 7 mm
- Fixing hole shape: 20 mm square fixing hole
- IP65 rated: Dust and water resistant
- Salt spray test: 240h (500h on request)
- Optional ground lug nut available for enhanced electrical safety and compliance
Additional Information
Quarter Turn Compression Lock F813 technical drawing
