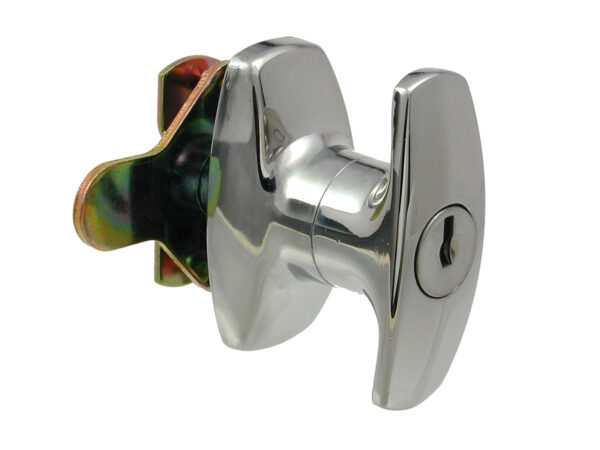

9mm T-Handle 1601
A range of 9mm T-handles available in epoxy, bright chrome or electrophoretic. Handles 1618, 1619, 1818 and 1873 have the option of a caulking cam and is ideal for garage doors, shutters and Metal Office Furniture.
Lock Options
| Product Code | Key Series | Combinations | Handle Depth | Cam Type | Handle Height | Lock Type | Mounting | Version | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| 1601 | 200 | 43 | 60 | Locking | Standard | Contact Sales | |||
| 1609 | 43 | 60 | Non-Locking | Standard | Contact Sales | ||||
| 1611 | 43 | 60 | Fixed | Standard | Contact Sales | ||||
| 1618 | 200 | 43 | Caulking | 60 | Locking | Standard | Contact Sales | ||
| 1619 | 43 | Caulking | 60 | Non-Locking | Standard | Contact Sales | |||
| 1629 | 200 | 43 | 60 | Locking | Standard | Contact Sales | |||
| 1630 | 43 | 60 | Non-Locking | Standard | Contact Sales | ||||
| 1631 | 43 | 60 | Fixed | Standard | Contact Sales | ||||
| 1701 | 2000 | 43 | 60 | Locking | Standard | Contact Sales | |||
| 1729 | 2000 | 43 | 60 | Locking | Standard | Contact Sales | |||
| 1801 | 1000 | 43 | 60 | Locking | Standard | Contact Sales | |||
| 1818 | 1000 | 43 | Caulking | 60 | Locking | Standard | Contact Sales | ||
| 1829 | 1000 | 43 | 60 | Locking | Standard | Contact Sales | |||
| 1871 | 1000 | 43 | 60 | Locking | Shuttered | Contact Sales | |||
| 1872 | 1000 | 43 | 60 | Locking | Shuttered | Contact Sales | |||
| 1873 | 1000 | 43 | Caulking | 60 | Locking | Shuttered | Contact Sales |
Standard Features
- Lock Combinations: 200-2,000
- Standard finish: Epoxy, bright chrome, electrophoretic
- Mounting hole shape: Round with screw fixing (see technical drawing)
- M Keyed system supplied to order only
Additional Information
9mm T-Handle 1601 technical drawing
