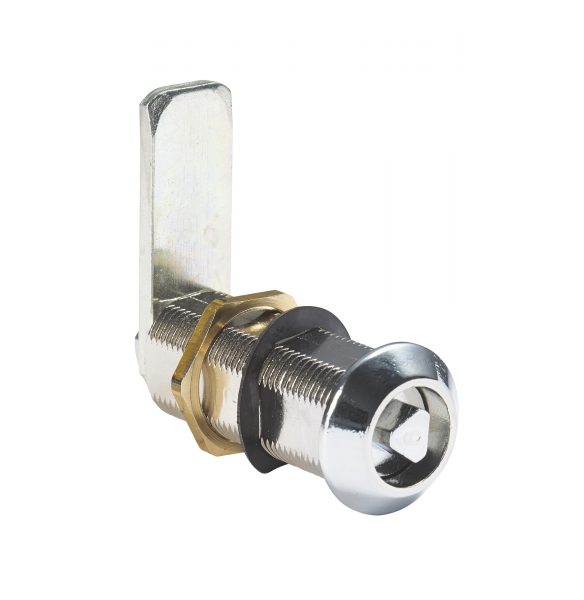

30mm – 60mm Tool Operated IP66 Cam Lock F550
A tool operated cam lock F550 available in bright chrome with a body length of 30mm, 40mm, 50mm or 60mm. This lock is IP66 rated making it ideal for use on applications such as hatches, switch cabinets, metal lockers and machine doors.
Lock Options
| Product Code | Housing Mounting | Head Width | Head Depth | Finish | Head Shape | IP66 | Key Number | Max Panel Thickness | Inquire |
|---|---|---|---|---|---|---|---|---|---|
| F550 | Nut mounting | 28 | 6 | Bright Chrome | Conical | Yes | F8412-T8M | 25 – 53 | Contact Sales |
Standard Features
- IP66 rated
- Standard movements: 90°
- Standard finish: Bright chrome
- Panel thickness: 25-53mm
- Mounting hole shape: Squared
- Body length: 30mm, 40mm, 50mm or 60mm please specify when ordering
- Dimension ‘B’ specification: See Cams
Additional Information
30mm - 60mm Tool Operated IP66 Cam Lock F550 technical drawing
