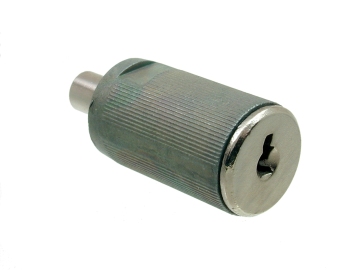

24mm-27.5mm Turn To Lock B602

A Turn To Lock available in bright nickel with a body length of 34.42mm, 44.6mm or 49mm. This lock is suitable for various applications including access panels, doors and cabinets. Minimum Order Quantities Apply To These Products. Please contact the sales team for more information.

Featured Technicals
24mm-27.5mm Turn To Lock B602 Technical Drawing
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth D Finish Head Shape L Dimension Lock Type Movement Stroke Enquire
B602 200 34.42 15.15 24 6 Bright Nickel Cylindrical 34.42 Turn to lock 3 3
B905 200 49 15.15 27.5 5 Bright Nickel Cylindrical 49 Turn to lock 3 6
B960 200 44.6 15.15 27 6 Bright Nickel Cylindrical 44.6 Turn to lock 3 7
Standard Features
  • Standard movements: 3
  • Lock Combinations: 200
  • Standard finish: Bright nickel
  • Fixing hole shape: Round
  • M Keyed system supplied to order only
  • Stroke length: B602 3mm, B960 7mm, B905 6mm
  • B602: Bolt tapped M3 x 6

Additional information

24mm-27.5mm Turn To Lock B602 technical drawing
