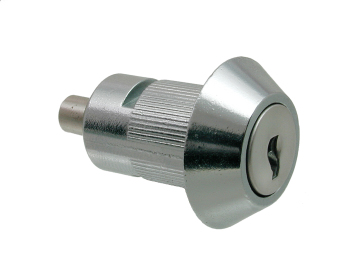

22mm Turn To Lock B466

A series of 22mm Turn To Locks available in bright chrome. The turn to lock action makes these locks ideal for applications such as enclosures and asset security.

Featured Technicals
22mm Turn To Lock B466 Technical Drawing
Lock Options
Product Code Key Series Combinations Body Length Head Width Head Depth Finish Head Shape Movement Stroke X Dimension Enquire
B466 200 23.9 25 6.5 Bright Chrome Conical 3 6 30
B490 200 23.9 25 6.5 Bright Chrome Conical 3 7 35
B588 200 23.9 25 6.5 Bright Chrome Conical 3 7 40.4
Standard Features
  • Standard movements: 3
  • Lock Combinations: 200
  • Standard finish: Bright chrome
  • Fixing hole shape: Round
  • Stroke length: B466 6mm, B490 & B588 7mm

Additional information

22mm Turn To Lock B466 technical drawing
